• eRacks/SIXPACK

  Run more, scale higher, save energy:

  Up to two Six-Core or Eight-Core Opteron Processors



  more photos

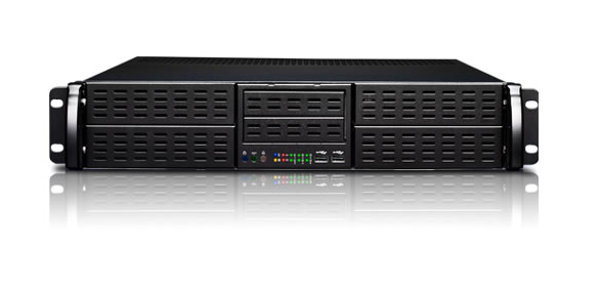

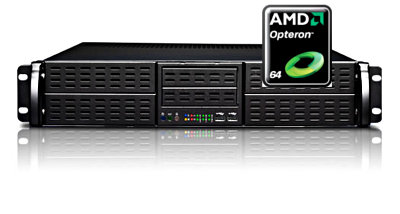

  eRacks/SIXPACK: featuring the new AMD® Six/Eight -Core Opteron 4200 series processor, "Valencia".

  Hardware Optimized for Virtualization; Software configuration on request.

  The eRacks/SIXPACK has six powerful processing units on each chip, delivering improved performance for environments such as virtualization, database, and web serving. It delivers improved hardware-assisted virtualization, and Optimized performance per watt. The New Core Architecture includes full performance from each core, high frequency and low-power design, virtualization enhancements, shared double-sized Flex FP, and ISA enhancements. Read more about AMD's 4200-series Opteron CPU.

  The default configuration for this desktop system includes:


  Chassis: Desktop eRacks/SIXPACK 2U Rackmount Chassis, (Redundant Power supply option available)
  Dimension (DxWxH): 27.1" x 19" x 3.5" chassis, Front Access USB2.0 x2, Power, HDD LED, Alarm Reset Switch
  CPU: AMD 6/8-Core Opteron CPU 4200 Series
  Motherboard: supports up to two AMDŽ 6/8-Core Opteron processors
  PCI Slots: 2 x16 PCI-e Slots (nVidia SLI Technology Supported), 1 x8 PCI-e (using x16 slot), 2 x4 PCI-e (using x8 slots), 1 32-bit PCI slot
  LAN: Dual-port Gigabit, LAN/Ethernet Controller
  Audio: HD Audio ALC883
  Memory: 8 x DDR2-800/667/533 SDRAM, Max capacity 64GB
  Drives: SAS, SATA3 Hard Drives, DVD
  Operating System: Ubuntu Linux operating system installed as default.
  Environment: Choice of desktop environments including GNOME, KDE, and others (specify any other Open Source applications to be installed, in the Notes field of your order.)
  Please contact eRacks for more information or custom orders!


• Product features / specs empty
•



• Option	Choices	More Info	Add/Subtract
  Chassis	2U eRacks/SIXPACK chassis 27.1in depth 550W PSU 2U eRacks/SIXPACK chassis 27.1in depth 650W PSU ($270.00)	2U eRacks/SIXPACK chassis 27.1in depth 550W PSU
  Motherboard	2 x Six-Core / Quad-Core Opteron Motherboard	2 x Six-Core / Quad-Core Opteron Motherboard
  Processor	Opteron 6-core 4226 2.7GHz 95W CPU Opteron 6-core 4234 3.1GHz 95W CPU ($75.00) 2 x Opteron 6-core 4234 3.1GHz 95W CPU ($345.00) Opteron 8-core 4256 EE 2.5GHz 35W CPU ($385.00) 2 x Opteron 8-core 4256 EE 2.5GHz 35W CPU ($965.00) Opteron 6-core 4228 HE 2.8GHz 65W CPU ($200.00) 2 x Opteron 6-core 4228 HE 2.8GHz 65W CPU ($590.00) 2 x Opteron 8-core 4284 3GHz 95W CPU ($780.00) Opteron 8-core 4284 3GHz 95W CPU ($295.00) Opteron 6-core 4238 3.3GHz 95W CPU ($200.00) 2 x Opteron 6-core 4238 3.3GHz 95W CPU ($590.00) 2 x Opteron 8-core 4280 2.8GHz 95W CPU ($590.00) Opteron 8-core 4280 2.8GHz 95W CPU ($200.00) 2 x Opteron 8-core 4274 HE 2.5GHz 65W CPU ($965.00) Opteron 8-core 4274 HE 2.5GHz 65W CPU ($385.00)	Opteron 6-core 4226 2.7GHz 95W CPU
  Memory DDR2	1GB DDR2 800MHz ECC/REG ($-30.00) 2GB DDR2 800MHz ECC/REG (1 x 2GB) 4GB DDR2 800MHz ECC/REG (2 x 2GB) ($90.00) 8GB DDR2 800MHz ECC/REG (4 x 2GB) ($265.00) 16GB DDR2 800MHz ECC/REG (4 x 4GB) ($595.00) 32GB DDR2 800MHz ECC/REG (4 x 8GB) ($1445.00) 64GB DDR2 800MHz ECC/REG (8 x 8GB) ($2995.00)	2GB DDR2 800MHz ECC/REG (1 x 2GB)
  5.25 inch Bay	Blu-Ray Reader 4x SATA 2MB ($45.00) Blu-Ray Burner ($205.00) DVDRW Dual Layer Tape Drive AIT-3 Sony (2U chassis req) ($2005.00) Tape Drive DDS-4 Sony Storage (2U chassis req) ($695.00) Tape Drive Quantum/Seagate DAT72 (2U chassis req) ($700.00) Tape Drive HP Storageworks DAT72 (2U chassis req) ($840.00) Tape Drive IBM DAT72 SCSI Interface (2U chassis) ($1095.00) Tape Drive DLT-V4 Quantum (2U chassis req) ($1170.00) 2 TB SATA II Hard Drive ($255.00) 3 TB SATA II Hard Drive ($305.00)	DVDRW Dual Layer
  Internal HD Bay	none 32 GB SATA II 2.5" SSD R 245 W 60 MB/s ($150.00) 64 GB SATA2 2.5" SSD R 270 W 230 MB/s ($245.00) 128 GB SATA2 2.5" SSD R 270 W 230 MB/s ($310.00) 256 GB SATA2 2.5" SSD R 270 W 230 MB/s ($845.00) 512 GB SATA2 2.5" SSD R 270 W 180 MB/s ($1410.00) 250 GB SATA II Hard Drive ($90.00) 500 GB SATA II Hard Drive ($130.00) 750 GB SATA II Hard Drive ($165.00) 1 TB SATA II Hard Drive ($205.00) 2 TB SATA II Hard Drive ($290.00) 2.5 TB SATA II Hard Drive ($315.00) 3 TB SATA II Hard Drive ($340.00)	none
  Removable HD Bay 1	32 GB SATA II 2.5" SSD R 245 W 60 MB/s ($60.00) 64 GB SATA2 2.5" SSD R 270 W 230 MB/s ($155.00) 128 GB SATA2 2.5" SSD R 270 W 230 MB/s ($220.00) 256 GB SATA2 2.5" SSD R 270 W 230 MB/s ($755.00) 512 GB SATA2 2.5" SSD R 270 W 180 MB/s ($1320.00) 250 GB SATA II Hard Drive 500 GB SATA II Hard Drive ($40.00) 750 GB SATA II Hard Drive ($75.00) 1 TB SATA II Hard Drive ($115.00) 2 TB SATA II Hard Drive ($205.00) 2.5 TB SATA II Hard Drive ($230.00) 3 TB SATA II Hard Drive ($250.00)	250 GB SATA II Hard Drive
  Removable HD Bay 2	none 32 GB SATA II 2.5" SSD R 245 W 60 MB/s ($150.00) 64 GB SATA2 2.5" SSD R 270 W 230 MB/s ($245.00) 128 GB SATA2 2.5" SSD R 270 W 230 MB/s ($310.00) 256 GB SATA2 2.5" SSD R 270 W 230 MB/s ($845.00) 512 GB SATA2 2.5" SSD R 270 W 180 MB/s ($1410.00) 250 GB SATA II Hard Drive ($90.00) 500 GB SATA II Hard Drive ($130.00) 750 GB SATA II Hard Drive ($165.00) 1 TB SATA II Hard Drive ($205.00) 2 TB SATA II Hard Drive ($290.00) 2.5 TB SATA II Hard Drive ($315.00) 3 TB SATA II Hard Drive ($340.00)	none
  Removable HD Bay 3	none 32 GB SATA II 2.5" SSD R 245 W 60 MB/s ($150.00) 64 GB SATA2 2.5" SSD R 270 W 230 MB/s ($245.00) 128 GB SATA2 2.5" SSD R 270 W 230 MB/s ($310.00) 256 GB SATA2 2.5" SSD R 270 W 230 MB/s ($845.00) 512 GB SATA2 2.5" SSD R 270 W 180 MB/s ($1410.00) 250 GB SATA II Hard Drive ($90.00) 500 GB SATA II Hard Drive ($130.00) 750 GB SATA II Hard Drive ($165.00) 1 TB SATA II Hard Drive ($205.00) 2 TB SATA II Hard Drive ($290.00) 2.5 TB SATA II Hard Drive ($315.00) 3 TB SATA II Hard Drive ($340.00)	none
  Removable HD Bay 4	none 32 GB SATA II 2.5" SSD R 245 W 60 MB/s ($150.00) 64 GB SATA2 2.5" SSD R 270 W 230 MB/s ($245.00) 128 GB SATA2 2.5" SSD R 270 W 230 MB/s ($310.00) 256 GB SATA2 2.5" SSD R 270 W 230 MB/s ($845.00) 512 GB SATA2 2.5" SSD R 270 W 180 MB/s ($1410.00) 250 GB SATA II Hard Drive ($90.00) 500 GB SATA II Hard Drive ($130.00) 750 GB SATA II Hard Drive ($165.00) 1 TB SATA II Hard Drive ($205.00) 2 TB SATA II Hard Drive ($290.00) 2.5 TB SATA II Hard Drive ($315.00) 3 TB SATA II Hard Drive ($340.00)	none
  PCI 1	none Quad Port Intel GbE Network card ($505.00) Single port 10/100 Network card ($30.00) Dual port Intel GbE Network card ($195.00) Single port GbE Network card ($55.00) 10GbE Intel PCI-E SFP+ Fiber Optic network ($815.00) 10GbE Universal 2-port CX4 copper network ($470.00) 10GbE Intel X520-T2 2-port RJ-4 network ($940.00) 4 port Network card 10/100 32-bit routerboard ($135.00) Wireless a/b/g PCI card ($75.00) HDTV HD-5500 TV Tuner Card ($160.00) Asus My Cinema P7131 ($50.00) Hauppage WinTV-HVR-1110 TV Tuner Card ($110.00) Sound Blaster Audigy SE ($35.00) Sound Blaster X-Fi Xtreme Audio ($90.00)	none
  PCI-e	none 10GbE Intel X520-T2 2-port RJ-4 network ($940.00) 10GbE Universal 2-port CX4 copper network ($470.00) 10GbE Intel PCI-E SFP+ Fiber Optic network ($815.00) HighPoint RocketRAID 1720 2-Port RAID Controller ($95.00) NVIDIA GTX275 1280MB 2DVI DDR3 ($345.00) NVIDIA GTX285 1GB 2DVI-I/DHCP TV-out SLI ($505.00) NVIDIA Quadro FX1800 768MB DVI 2xDisplayPort ($530.00) NVIDIA Quadro FX5800 4GB DVI 2xDisplayPort ($4185.00) NVIDIA Quadro FX3800 1GB DVI 2xDisplayPort ($1090.00) NVIDIA Quadro FX380 256MB 2xDVI ($175.00) NVIDIA Quadro FX580 512MB DVI 2xDisplayPort ($215.00) 3ware 9650SE 2-port RAID LP PCI-E ($245.00) 3ware 9690 RAID 4 ports SAS/SATA2 LP PCI-E ($450.00)	none
  Operating System	OpenBSD PCLinuxOS Puppy Linux FreeBSD legacy FreeBSD production Gentoo Linux NetBSD SimplyMEPIS Linux 11 Ubuntu Linux 12.04 LTS Server Edition Ubuntu Linux 13.04 Server Edition Ubuntu Linux 13.04 Desktop Edition Ubuntu Linux 12.04 LTS Desktop Edition Mandriva Linux ELX Linux Linux Mint 13 CentOS Linux 5.x current Fedora Linux 18 CentOS Linux 6.x current Fedora Linux 17 Novell SUSE Linux Enterprise Desktop 11 ($45.00) Red Hat® Linux Enterprise Workstation ($245.00) OpenSUSE Debian Linux - development Debian Linux - testing Debian Linux - stable v6.0.x Xandros Standard ($55.00) Xandros Deluxe ($135.00) No OS - (tested with Ubuntu) MS Windows 7 Professional ($190.00) MS Windows 7 Home Premium ($140.00)	Ubuntu Linux 12.04 LTS Server Edition
  Donation target	Electronic Frontier Foundation Other Open Source Project (please state in Notes) The OpenBSD Project The OpenSSH Project The FreeBSD Foundation No donation	Electronic Frontier Foundation
  Donation amount	No donation ($-5.00) $5.00 $10.00 ($10.00) $25.00 ($30.00) $50.00 ($60.00)	$5.00
  Warranty	Standard 1yr full /3yr limited warranty Extended 2yr full / 3yr limited warranty ($135.00) Premium full 3yr warranty ($270.00)	Standard 1yr full /3yr limited warranty
