  Intel® Xeon Quad-core: Exceptional performance and power efficiency at a very affordable cost. more photos Enter any special requests in the Notes field of your order.

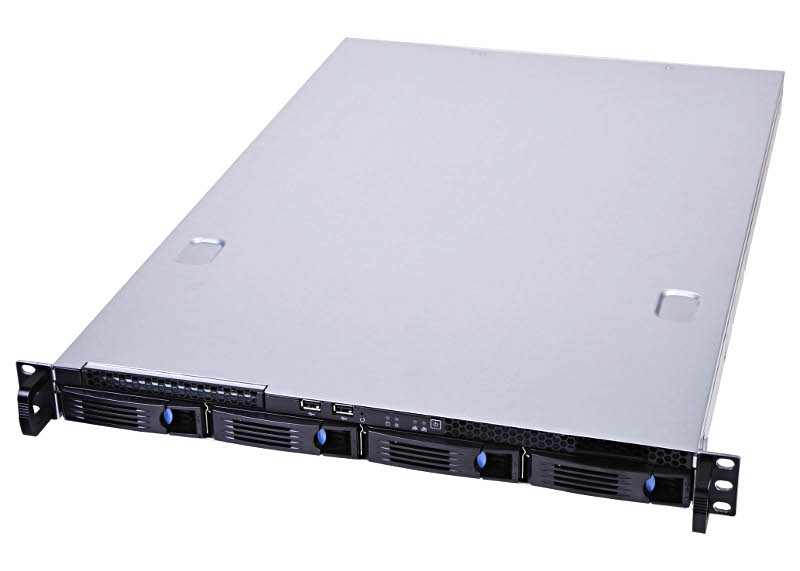

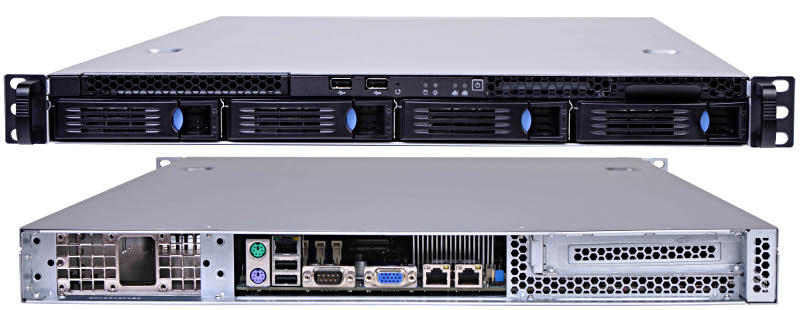

  This server has four hotswap removable drive bays, and uses the powerful IntelŽ XeonŽ processor E5-2600 single/dual processor, SATA3 hard drives, and DDR3 memory. This system is also available in a larger chassis or pedestal format. Contact eRacks for a custom quote, with your requirements. The default configuration includes: 1U-height Rackmount Chassis, 4 HOTSWAP drives Size: 1.75in(H) x 19in(W) x 26in(D) 300W power supply (option for higher Watt, and Redundant) LGA 2011 Dual Socket R Intel Xeon® E5-2600 Intel® X58 Express Chipset motherboard Single or Dual IntelŽ XeonŽ E5-2600 Processor Onboard Dual Gigabit Ethernet 10/100/1000 Onboard Audio 16 x 240-pin DDR3 DIMM sockets; Up to 512GB RDIMM DDR3 ECC/REG 1333MHz Four hotswap removable SATA3 Hard Drive Bays, RAID 0,1,5,10 Slim DVD Note: keyboard, mouse, monitor not included.

• Product features / specs empty
•





• Option	Choices	More Info	Add/Subtract
  Chassis	ENTERPRISE 1U Chassis 4RHD 26in depth	ENTERPRISE 1U Chassis 4RHD 26in depth
  Power Supply	300w Power Supply for 1U rackmount chassis 520W Power Supply for 1U rackmount chassis ($40.00) 550W Redundant PS for 1U rackmount chassis ($690.00)	300w Power Supply for 1U rackmount chassis
  Motherboard	eRacks Dual socket Xeon E5-2600 motherboard	eRacks Dual socket Xeon E5-2600 motherboard
  Processor	Intel Xeon Quad-Core E5-2603 1.8GHz 10MB CPU Intel Xeon Quad-Core E5-2609 2.4GHz 10MB CPU ($120.00) Intel Xeon Six-Core E5-2620 2.0GHz 15MB CPU ($285.00) Intel Xeon Six-Core E5-2630 2.3GHz 15MB CPU ($575.00) Intel Xeon Six-Core E5-2630L 2GHz 15MB CPU ($610.00) Intel Xeon Dual-Core E5-2637 3GHz 5MB CPU ($910.00) Intel Xeon Six-Core E5-2640 2.5GHz 15MB CPU ($930.00) Intel Xeon Quad-Core E5-2643 3.3GHz 10MB CPU ($910.00) Intel Xeon Eight-Core E5-2650 2GHz 20MB CPU ($1210.00) Intel Xeon Eight-Core E5-2650L 1.8GHz 20MB CPU ($1210.00) Intel Xeon Eight-Core E5-2660 2.2GHz 20MB CPU ($1515.00) Intel Xeon Eight-Core E5-2665 2.4GHz 20MB CPU ($1650.00) Intel Xeon Six-Core E5-2667 2.9GHz 15MB CPU ($1815.00) Intel Xeon Eight-Core E5-2670 2.6GHz 20MB CPU ($1795.00) Intel Xeon Eight-Core E5-2680 2.7GHz 20MB CPU ($2055.00) Intel Xeon Eight-Core E5-2687W 3.1GHz 20MB CPU ($2280.00) Intel Xeon Eight-Core E5-2690 2.9GHz 20MB CPU ($2470.00) 2 x Intel Xeon Quad-Core E5-2603 1.8GHz 10MB CPUs ($285.00) 2 x Intel Xeon Quad-Core E5-2609 2.4GHz 10MB CPUs ($525.00) 2 x Intel Xeon Six-Core E5-2620 2.0GHz 15MB CPUs ($850.00) 2 x Intel Xeon Six-Core E5-2630 2.3GHz 15MB CPUs ($1435.00) 2 x Intel Xeon Six-Core E5-2630L 2GHz 15MB CPUs ($1505.00) 2 x Intel Xeon Dual-Core E5-2637 3GHz 5MB CPUs ($2105.00) 2 x Intel Xeon Six-Core E5-2640 2.5GHz 15MB CPU ($2145.00) 2 x Intel Xeon Quad-Core E5-2643 3.3GHz 10MB CPUs ($2105.00) 2 x Intel Xeon Eight-Core E5-2650 2GHz 20MB CPU ($2705.00) 2 x Intel Xeon Eight-Core E5-2650L 1.8GHz 20MB CPU ($2705.00) 2 x Intel Xeon Eight-Core E5-2660 2.2GHz 20MB CPUs ($3310.00) 2 x Intel Xeon Eight-Core E5-2665 2.4GHz 20MB CPUs ($3575.00) 2 x Intel Xeon Six-Core E5-2667 2.9GHz 15MB CPUs ($3910.00) 2 x Intel Xeon Eight-Core E5-2670 2.6GHz 20MB CPUs ($3875.00) 2 x Intel Xeon Eight-Core E5-2680 2.7GHz 20MB CPUs ($4385.00) 2 x Intel Xeon Eight-Core E5-2687W 3.1GHz 20MB CPU ($4845.00) 2 x Intel Xeon Eight-Core E5-2690 2.9GHz 20MB CPUs ($5225.00)	Intel Xeon Quad-Core E5-2603 1.8GHz 10MB CPU
  Memory DDR3	4 GB DDR3 ECC/REG 1333MHz 8 GB DDR3 ECC/REG 1333MHz ($70.00) 16 GB DDR3 ECC/REG 1333MHz ($230.00) 24 GB DDR3 ECC/REG 1333MHz ($380.00) 32 GB DDR3 ECC/REG 1333MHz ($525.00) 64 GB DDR3 ECC/REG 1333MHz ($1120.00) 128 GB DDR3 ECC/REG 1333MHz ($2310.00) 256 GB DDR3 ECC/REG 1333MHz ($4685.00) 512 GB DDR3 ECC/REG 1333MHz (16 x 32GB) ($58255.00)	4 GB DDR3 ECC/REG 1333MHz
  Slim CD Bay	Slimline CD ROM ($-20.00) Slimline DVD / CDRW ($10.00) Slimline BluRay Burner ($100.00) Slimline DVDRW	Slimline DVDRW
  SATA3 Drives	1 x 64GB SATA3 SSD 415MB/s R, 95MB/s W ($-25.00) 4 x 64GB SATA3 SSD 415MB/s R, 95MB/s W ($500.00) 1 x 256GB SATA3 SSD 415MB/s R, 260MB/s W ($420.00) 4 x 256GB SATA3 SSD 415MB/s R, 260MB/s W ($2310.00) 1 x 512GB SATA3 SSD 415MB/s R, 260MB/s W ($955.00) 4 x 512GB SATA3 SSD 415MB/s R, 260MB/s W ($4440.00) 500 GB SATA3 7200rpm Hard Drive ($-80.00) 1.0 TB SATA3 7200rpm Hard Drive ($-15.00) 2.0 TB SATA3 7200rpm Hard Drive ($60.00) 3.0 TB SATA3 7200rpm Hard Drive ($155.00) 4.0 TB SATA3 7200rpm Hard Drive ($330.00) 2 x 500 GB SATA3 7200rpm Hard Drives 2 x 1.0 TB SATA3 7200rpm Hard Drives ($170.00) 2 x 2.0 TB SATA3 7200rpm Hard Drives ($330.00) 2 x 3.0 TB SATA3 7200rpm Hard Drives ($520.00) 2 x 4.0 TB SATA3 7200rpm Hard Drives ($870.00) 3 x 500 GB SATA3 7200rpm Hard Drives ($105.00) 3 x 1.0 TB SATA3 7200rpm Hard Drives ($355.00) 3 x 2.0 TB SATA3 7200rpm Hard Drives ($600.00) 3 x 3.0 TB SATA3 7200rpm Hard Drives ($885.00) 3 x 4.0 TB SATA3 7200rpm Hard Drives ($1410.00) 4 x 500 GB SATA3 7200rpm Hard Drives ($210.00) 4 x 1.0 TB SATA3 7200rpm Hard Drives ($545.00) 4 x 2.0 TB SATA3 7200rpm Hard Drives ($870.00) 4 x 3.0 TB SATA3 7200rpm Hard Drives ($1250.00) 4 x 4.0 TB SATA3 7200rpm Hard Drives ($1950.00)	2 x 500 GB SATA3 7200rpm Hard Drives
  PCI	none Dual port Intel GbE Network card ($195.00) Single port 10/100 Network card ($30.00) 10GbE Intel X520-T2 2-port RJ-4 network ($940.00) 10GbE Universal 2-port CX4 copper network ($470.00) 10GbE Intel PCI-E SFP+ Fiber Optic network ($815.00) Single Intel 10/100 Network card ($35.00) 4 port Network card 10/100/1000 ($505.00) 3ware 9650SE 4-port RAID PCI-E w/riser ($460.00)	none
  PCI-e	none 10GbE Intel X520-T2 2-port RJ-4 network ($940.00) 10GbE Universal 2-port CX4 copper network ($470.00) 10GbE Intel PCI-E SFP+ Fiber Optic network ($815.00) HighPoint RocketRAID 1720 2-Port RAID Controller ($95.00) 3ware 9650SE 4-port RAID PCI-E w/riser ($460.00) 3ware 9650SE 2-port RAID LP PCI-E ($245.00)	none
  Rail kits	none ($-35.00) Rail kit, one pair 26" (26-34" depth) Center Mount Brackets for 1U chassis ($-25.00) Rear Mount Brackets for 1U chassis ($-25.00)	Rail kit, one pair 26" (26-34" depth)
  Operating System	OpenBSD FreeBSD legacy FreeBSD production FreeBSD/amd64 NetBSD/amd64 Gentoo Linux NetBSD Ubuntu Linux 12.04 LTS Server Edition Ubuntu Linux 13.04 Server Edition Ubuntu Linux 13.04 Desktop Edition Ubuntu Linux 12.04 LTS Desktop Edition Mandriva Linux Fedora Linux 18 Red Hat® Linux Enterprise ES ($475.00) CentOS Linux 5.x current Fedora Linux 17 CentOS Linux 6.x current Novell SUSE Linux Enterprise Desktop 11 ($45.00) Red Hat® Linux Advanced Server AMD64 (as ava ($605.00) SuSE Linux AMD64 (download edition) Novell SUSE Linux Enterprise Server 11 ($345.00) Debian Linux - development Debian Linux - testing Debian Linux - stable v6.0.x	Ubuntu Linux 12.04 LTS Server Edition
  Donation target	Electronic Frontier Foundation The OpenBSD Project Other Open Source Project (please state in Notes) The FreeBSD Foundation The OpenSSH Project No donation	Electronic Frontier Foundation
  Donation amount	No donation ($-5.00) $5.00 $10.00 ($10.00) $25.00 ($30.00) $50.00 ($60.00) $75.00 ($95.00) $100.00 ($130.00)	$5.00
  Warranty	Standard 1yr full /3yr limited warranty Extended 2yr full / 3yr limited warranty ($135.00) Premium full 3yr warranty ($270.00)	Standard 1yr full /3yr limited warranty
