• eRacks/SANDYTOWER



  4U Rackmountable Tower / optional rackmount kit
  more photos

  eRacks/SANDYTOWER: featuring the new Intel® Quad CoreTM Xeon processor, E5-2600 series. Intel® server processors deliver enhanced, energy-efficient performance for intensive business applications from virtualization and cloud computing to design automation or real-time financial transactions. Data bottlenecks are eliminated and I/O latency is dramatically reduced with Intel® Integrated I/O.

  This Tower system has eight hotswap-drive bays and can also be used in a rackmount shelf, sideways as a 4U rackmount format.

  Choose from the online configuration or request your own combination of components.

  The default configuration for this desktop server includes:

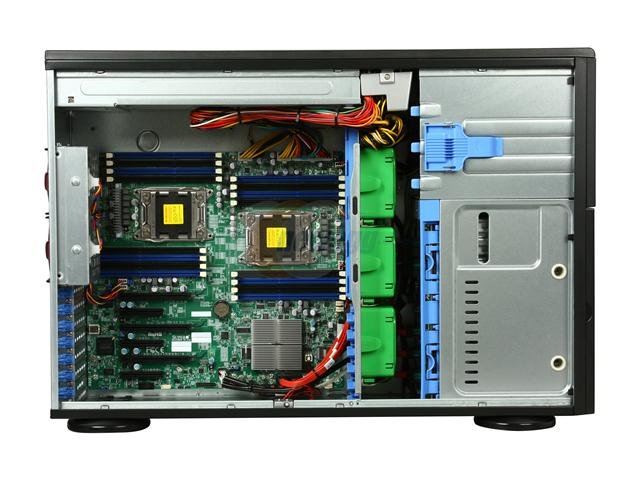

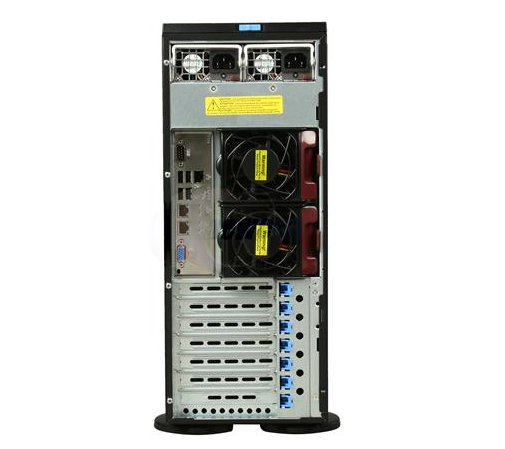

  Chassis: Black Tower Chassis, 8x Hot-swap 3.5" SAS/SATA Drive Trays.
  Power supply: 920W high-efficiency (94%+) AC-DC power supply with PMBus and I2C (optional Redundant PS)
  Dimension (WxDxH): Height: 17.2in, Depth: 25.5in, Width: 7.0in. Weight: approx 60 lbs
  Motherboard: Dual socket R (LGA 2011) supports IntelŽ XeonŽ processor E5-2600
  LAN: IntelŽ i350 Dual port GbE LAN
  Video: G200 (Nuvoton WPCM450 BMC with graphic controller)
  Audio: RealTek ALC889 7.1 High Definition Audio with S/PDIF header
  Memory: 16 x DDR3 1600 ECC DIMMs, Max capacity 512GB
  Drives: 8 x hotswap SATA3 Hard Drives, DVD or other options available
  Operating System: Ubuntu Linux operating system installed as default.
  Environment: Choice of desktop environments including GNOME, KDE, and others (specify any other Open Source applications to be installed, in the Notes field of your order.)
  Modification option:Quietization is possible, although some system noise will still be present.

  Please contact eRacks for more information or custom orders!


• Product features / specs empty
•








• Option	Choices	More Info	Add/Subtract
  Chassis	Tower/4U SANDYTOWER 8HD chassis 920W PS SANDYTOWER with REDUNDANT Power Supply 920W ($540.00)	Tower/4U SANDYTOWER 8HD chassis 920W PS
  Motherboard	Dual socket Xeon E5-2600 SANDYTOWER motherboard	Dual socket Xeon E5-2600 SANDYTOWER motherboard
  Processor	Intel Xeon Quad-Core E5-2603 1.8GHz 10MB CPU Intel Xeon Quad-Core E5-2609 2.4GHz 10MB CPU ($120.00) Intel Xeon Six-Core E5-2620 2.0GHz 15MB CPU ($285.00) Intel Xeon Six-Core E5-2630 2.3GHz 15MB CPU ($575.00) Intel Xeon Six-Core E5-2630L 2GHz 15MB CPU ($610.00) Intel Xeon Dual-Core E5-2637 3GHz 5MB CPU ($910.00) Intel Xeon Six-Core E5-2640 2.5GHz 15MB CPU ($930.00) Intel Xeon Quad-Core E5-2643 3.3GHz 10MB CPU ($910.00) Intel Xeon Eight-Core E5-2650 2GHz 20MB CPU ($1210.00) Intel Xeon Eight-Core E5-2650L 1.8GHz 20MB CPU ($1210.00) Intel Xeon Eight-Core E5-2660 2.2GHz 20MB CPU ($1515.00) Intel Xeon Eight-Core E5-2665 2.4GHz 20MB CPU ($1650.00) Intel Xeon Six-Core E5-2667 2.9GHz 15MB CPU ($1815.00) Intel Xeon Eight-Core E5-2670 2.6GHz 20MB CPU ($1795.00) Intel Xeon Eight-Core E5-2680 2.7GHz 20MB CPU ($2055.00) Intel Xeon Eight-Core E5-2687W 3.1GHz 20MB CPU ($2280.00) Intel Xeon Eight-Core E5-2690 2.9GHz 20MB CPU ($2470.00) 2 x Intel Xeon Quad-Core E5-2603 1.8GHz 10MB CPUs ($285.00) 2 x Intel Xeon Quad-Core E5-2609 2.4GHz 10MB CPUs ($525.00) 2 x Intel Xeon Six-Core E5-2620 2.0GHz 15MB CPUs ($850.00) 2 x Intel Xeon Six-Core E5-2630 2.3GHz 15MB CPUs ($1435.00) 2 x Intel Xeon Six-Core E5-2630L 2GHz 15MB CPUs ($1505.00) 2 x Intel Xeon Dual-Core E5-2637 3GHz 5MB CPUs ($2105.00) 2 x Intel Xeon Six-Core E5-2640 2.5GHz 15MB CPU ($2145.00) 2 x Intel Xeon Quad-Core E5-2643 3.3GHz 10MB CPUs ($2105.00) 2 x Intel Xeon Eight-Core E5-2650 2GHz 20MB CPU ($2705.00) 2 x Intel Xeon Eight-Core E5-2650L 1.8GHz 20MB CPU ($2705.00) 2 x Intel Xeon Eight-Core E5-2660 2.2GHz 20MB CPUs ($3310.00) 2 x Intel Xeon Eight-Core E5-2665 2.4GHz 20MB CPUs ($3575.00) 2 x Intel Xeon Six-Core E5-2667 2.9GHz 15MB CPUs ($3910.00) 2 x Intel Xeon Eight-Core E5-2670 2.6GHz 20MB CPUs ($3875.00) 2 x Intel Xeon Eight-Core E5-2680 2.7GHz 20MB CPUs ($4385.00) 2 x Intel Xeon Eight-Core E5-2687W 3.1GHz 20MB CPU ($4845.00) 2 x Intel Xeon Eight-Core E5-2690 2.9GHz 20MB CPUs ($5225.00)	Intel Xeon Quad-Core E5-2603 1.8GHz 10MB CPU
  Memory DDR3	2 GB 1600MHz DDR3 ECC REG (1 DIMM) 4 GB 1600MHz DDR3 ECC REG (1 DIMM) ($10.00) 8 GB 1600MHz DDR3 ECC REG (1 DIMM) ($95.00) 8 GB 1600MHz DDR3 ECC REG (2 DIMMs) ($45.00) 16 GB 1600MHz DDR3 ECC REG (4 DIMMs) ($120.00) 24 GB 1600MHz DDR3 ECC REG (6 x 4GB) ($215.00) 32 GB 1600MHz DDR3 ECC REG (8 DIMMs) ($275.00) 32 GB 1600MHz DDR3 ECC REG (4 DIMMs) ($455.00) 64 GB 1600MHz DDR3 ECC REG (8 DIMMs) ($945.00) 64 GB 1600MHz DDR3 ECC REG (16 DIMMs) ($575.00) 128 GB 1600MHz DDR3 ECC REG (16 DIMMs) ($1915.00)	2 GB 1600MHz DDR3 ECC REG (1 DIMM)
  5.25 inch Bay	Blu-Ray Reader 4x SATA 2MB ($45.00) Blu-Ray Burner ($205.00) DVDRW Dual Layer	DVDRW Dual Layer
  5.25 inch Bay 2	none Blu-Ray Reader 4x SATA 2MB ($80.00) Blu-Ray Burner ($245.00) DVDRW Dual Layer ($40.00)	none
  Removable Hard Drives	320 GB SATA3 7200rpm Hard Drive ($-70.00) 500 GB SATA3 7200rpm Hard Drive ($-60.00) 750 GB SATA3 7200rpm Hard Drive ($-45.00) 1.0 TB SATA3 7200rpm Hard Drive ($5.00) 2.0 TB SATA3 7200rpm Hard Drive ($85.00) 3.0 TB SATA3 7200rpm Hard Drive ($180.00) 4.0 TB SATA3 7200rpm Hard Drive ($355.00) 2 x 320 GB SATA3 7200rpm Hard Drives 2 x 500 GB SATA3 7200rpm Hard Drives ($30.00) 2 x 750 GB SATA3 7200rpm Hard Drives ($60.00) 2 x 1.0 TB SATA3 7200rpm Hard Drives ($195.00) 2 x 2.0 TB SATA3 7200rpm Hard Drives ($355.00) 2 x 3.0 TB SATA3 7200rpm Hard Drives ($545.00) 2 x 4.0 TB SATA3 7200rpm Hard Drives ($895.00) 4 x 500 GB SATA3 7200rpm Hard Drives ($240.00) 4 x 750 GB SATA3 7200rpm Hard Drives ($305.00) 4 x 1.0 TB SATA3 7200rpm Hard Drives ($575.00) 4 x 2.0 TB SATA3 7200rpm Hard Drives ($895.00) 4 x 3.0 TB SATA3 7200rpm Hard Drives ($1275.00) 4 x 4.0 TB SATA3 7200rpm Hard Drives ($1975.00) 8 x 500 GB SATA3 7200rpm Hard Drives ($660.00) 8 x 750 GB SATA3 7200rpm Hard Drives ($790.00) 8 x 1.0 TB SATA3 7200rpm Hard Drives ($1330.00) 8 x 2.0 TB SATA3 7200rpm Hard Drives ($1975.00) 8 x 3.0 TB SATA3 7200rpm Hard Drives ($2735.00) 8 x 4.0 TB SATA3 7200rpm Hard Drives ($4135.00)	2 x 320 GB SATA3 7200rpm Hard Drives
  PCI 1	none Quad Port Intel GbE Network card ($505.00) Single port GbE Network card ($55.00) Single port 10/100 Network card ($30.00) Dual port Intel GbE Network card ($195.00) 10GbE Universal 2-port CX4 copper network ($470.00) 10GbE Intel X520-T2 2-port RJ-4 network ($940.00) 10GbE Intel PCI-E SFP+ Fiber Optic network ($815.00) 4 port Network card 10/100 32-bit routerboard ($135.00) Wireless a/b/g PCI card ($75.00) Hauppage WinTV-HVR-1110 TV Tuner Card ($110.00) Asus My Cinema P7131 ($50.00) HDTV HD-5500 TV Tuner Card ($160.00) Sound Blaster Audigy SE ($35.00) Sound Blaster X-Fi Xtreme Audio ($90.00)	none
  PCI 2	none Quad Port Intel GbE Network card ($505.00) Single port 10/100 Network card ($30.00) Dual port Intel GbE Network card ($195.00) Single port GbE Network card ($55.00) 10GbE Intel X520-T2 2-port RJ-4 network ($940.00) 10GbE Universal 2-port CX4 copper network ($470.00) 10GbE Intel PCI-E SFP+ Fiber Optic network ($815.00) 4 port Network card 10/100 32-bit routerboard ($135.00) Wireless a/b/g PCI card ($75.00) HDTV HD-5500 TV Tuner Card ($160.00) Asus My Cinema P7131 ($50.00) Hauppage WinTV-HVR-1110 TV Tuner Card ($110.00) Sound Blaster Audigy SE ($35.00) Sound Blaster X-Fi Xtreme Audio ($90.00)	none
  PCI-e	none 10GbE Intel PCI-E SFP+ Fiber Optic network ($815.00) 10GbE Universal 2-port CX4 copper network ($470.00) 10GbE Intel X520-T2 2-port RJ-4 network ($940.00) HighPoint RocketRAID 1720 2-Port RAID Controller ($95.00) NVIDIA GTX285 1GB 2DVI-I/DHCP TV-out SLI ($505.00) NVIDIA GTX275 1280MB 2DVI DDR3 ($345.00) NVIDIA Quadro FX5800 4GB DVI 2xDisplayPort ($4185.00) NVIDIA Quadro FX580 512MB DVI 2xDisplayPort ($215.00) NVIDIA Quadro FX3800 1GB DVI 2xDisplayPort ($1090.00) NVIDIA Quadro FX380 256MB 2xDVI ($175.00) NVIDIA Quadro FX1800 768MB DVI 2xDisplayPort ($530.00) 3ware 9650SE 2-port RAID LP PCI-E ($245.00) 3ware 9690 RAID 4 ports SAS/SATA2 LP PCI-E ($450.00)	none
  Rail kits	none Rackmount kit for eRacks/SANDYTOWER ($50.00)	none
  Operating System	OpenBSD PCLinuxOS Puppy Linux FreeBSD legacy FreeBSD production Gentoo Linux NetBSD SimplyMEPIS Linux 11 Ubuntu Linux 12.04 LTS Server Edition Ubuntu Linux 13.04 Server Edition Ubuntu Linux 13.04 Desktop Edition Ubuntu Linux 12.04 LTS Desktop Edition Mandriva Linux ELX Linux Linux Mint 13 Fedora Linux 18 CentOS Linux 5.x current CentOS Linux 6.x current Novell SUSE Linux Enterprise Desktop 11 ($45.00) Fedora Linux 17 Red Hat® Linux Enterprise Workstation ($245.00) OpenSUSE Debian Linux - development Debian Linux - testing Debian Linux - stable v6.0.x Xandros Standard ($55.00) Xandros Deluxe ($135.00) No OS - (tested with Ubuntu) MS Windows 7 Professional ($190.00) MS Windows 7 Home Premium ($140.00)	Ubuntu Linux 12.04 LTS Server Edition
  Donation target	The FreeBSD Foundation The OpenSSH Project The OpenBSD Project Other Open Source Project (please state in Notes) Electronic Frontier Foundation No donation	Electronic Frontier Foundation
  Donation amount	No donation ($-5.00) $5.00 $10.00 ($10.00) $25.00 ($30.00) $50.00 ($60.00)	$5.00
  Warranty	Standard 1yr full /3yr limited warranty Extended 2yr full / 3yr limited warranty ($135.00) Premium full 3yr warranty ($270.00)	Standard 1yr full /3yr limited warranty
