eRacks/NAS8

Overview

Specifications

Photos

Configure

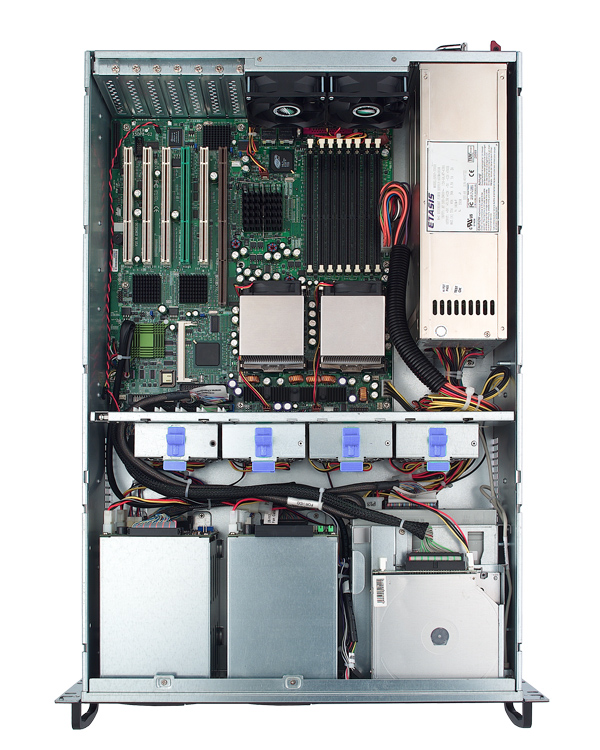

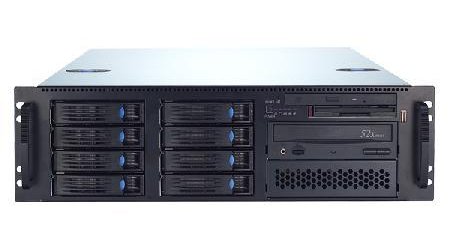

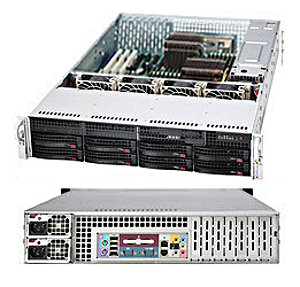

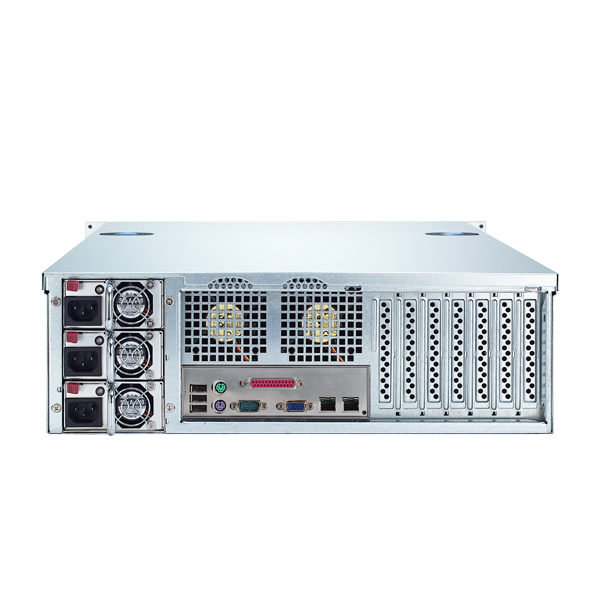

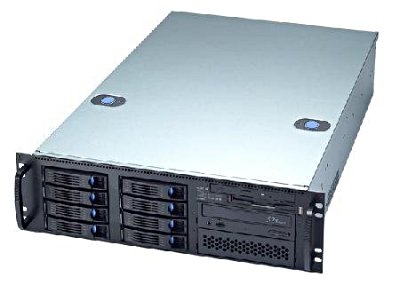

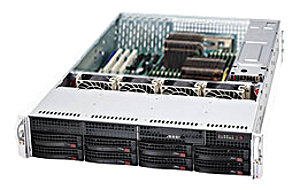

• eRacks/NAS8 The eRacks/NAS8 is a Network Attached Storage file server, compatible with Windows. Samba is installed. On request, NFS, Novell, Apple compatibility configurations installed. Redundant PSU options available, as well as SAS drives. Other motherboard/processor configurations are possible. Contact eRacks for other configurations and/or more information. eRacks/NAS8: more photos, including 2U chassis option The default hardware configuration includes: Chassis: 2U-height 920W RPS. (Option: 3U-height Chassis, 510W PS, with CD bay) Power Supply: 920W RPS Hard Drive Bays: 8 Removable hotswap SATA / SAS Drives Motherboard: Single/Dual AMD Opteron series 6200 CPU / DDR3/ SATA/ IPMI CPU: Single/Dual 8-core/12-core/16-core Opteron 6200 series Memory: DDR3-1333 ECC/REG RAID card: LSI or 3ware SATA3 / SATA II / SAS 8-port Note: CD drive on 3U chassis only Please email info@eracks.com or phone to request a custom quote.

• Product features / specs empty
•








• Option	Choices	More Info	Add/Subtract
  Chassis	NAS3U 8RHD +CD 510W PS 26in depth ($35.00) NAS2U 8RHD 920W RPS 27.75in depth	NAS2U 8RHD 920W RPS 27.75in depth
  Motherboard	AMD Opteron 61/6200 H8DG6-F IPMI motherboard Intel Dual Xeon X8DTN+-F IPMI motherboard ($-190.00)	AMD Opteron 61/6200 H8DG6-F IPMI motherboard
  Processor - AMD	1 x AMD Opteron 8-core 6212 2.6GHz 115W CPU 2 x AMD Opteron 8-core 6212 2.6GHz 115W CPUs ($410.00) 1 x AMD Opteron 4-core 6204 3.3GHz 115W CPU ($290.00) 2 x AMD Opteron 4-core 6204 3.3GHz 115W CPUs ($985.00) 1 x AMD Opteron 16-core 6262HE 1.6GHz 85W CPU ($385.00) 2 x AMD Opteron 16-core 6262HE 1.6GHz 85W CPUs ($1180.00) 1 x AMD Opteron 12-core 6234 2.4GHz 115W CPU ($170.00) 2 x AMD Opteron 12-core 6234 2.4GHz 115W CPUs ($755.00) 1 x AMD Opteron 16-core 6282SE 2.6GHz 140W CPU ($1125.00) 2 x AMD Opteron 16-core 6282SE 2.6GHz 140W CPUs ($2655.00) none (using Intel Xeon) ($-305.00)	1 x AMD Opteron 8-core 6212 2.6GHz 115W CPU
  Processor - Intel	Intel Xeon Six Core W3690 3.46GHz 12MB 130W CPU ($1350.00) 2 x Intel Xeon Six Core W3690 3.46GHz 12MB 130W ($2700.00) Intel Xeon Quad Core E5603 1.6GHz 4MB 80W CPU ($255.00) 2 x Intel Xeon Quad Core E5603 1.6GHz 4MB 80W ($510.00) Intel Xeon Quad Core E5606 2.13GHz 8MB 80W CPU ($295.00) 2 x Intel Xeon Quad Core E5606 2.13GHz 8MB 80W ($590.00) Intel Xeon Quad Core E5607 2.26GHz 8MB 80W CPU ($375.00) 2 x Intel Xeon Quad Core E5607 2.26GHz 8MB 80W ($745.00) Intel Xeon Six Core E5645 2.4GHz 12MB 80W CPU ($745.00) 2 x Intel Xeon Six Core E5645 2.4GHz 12MB 80W ($1490.00) Intel Xeon Six Core E5649 2.53GHz 12MB 80W CPU ($1045.00) 2 x Intel Xeon Six Core E5649 2.53GHz 12MB 80W ($2090.00) Intel Xeon Quad Core X5647 2.93GHz 12MB 130W CPU ($1045.00) 2 x Intel Xeon Quad Core X5647 2.93GHz 12MB 130W ($2090.00) Intel Xeon Quad Core X5672 3.2GHz 12MB 95W CPU ($1945.00) 2 x Intel Xeon Quad Core X5672 3.2GHz 12MB 95W ($3890.00) Intel Xeon Six Core X5675 3.06GHz 12MB 95W CPU ($1945.00) 2 x Intel Xeon Six Core X5675 3.06GHz 12MB 95W ($3890.00) Intel Xeon Quad Core X5687 3.6GHz 12MB 130W CPU ($2245.00) 2 x Intel Xeon Quad Core X5687 3.6GHz 12MB 130W ($4490.00) Intel Xeon Six Core X5690 3.46GHz 12MB 139W CPU ($2245.00) 2 x Intel Xeon Six Core X5690 3.46GHz 12MB 139W ($4490.00) none (using AMD Opteron)	none (using AMD Opteron)
  Memory DDR3	4 GB DDR3 ECC/REG 1333MHz 8 GB DDR3 ECC/REG 1333MHz ($70.00) 16 GB DDR3 ECC/REG 1333MHz ($230.00) 32 GB DDR3 ECC/REG 1333MHz ($525.00) 64 GB DDR3 ECC/REG 1333MHz ($1120.00) 128 GB DDR3 ECC/REG 1333MHz ($2310.00)	4 GB DDR3 ECC/REG 1333MHz
  HD Controller -RAID	3ware 9750-8I for RAID 0,1,5,6,10,50,S,JBOD 8-port ($75.00) LSI Logic MegaRAID SAS LSI9260-8i 8-portx4 RAID	LSI Logic MegaRAID SAS LSI9260-8i 8-portx4 RAID
  RAID Configuration	none (JBOD) rsync (JBOD) RAID 0 (striping) RAID 1 (mirroring) RAID 10 (mirroring and striping) RAID 5 (striped with parity) RAID 6 (striped with dual parity)	none (JBOD)
  Removable Hard Drives	none ($-1630.00) 8 x SAS2 147GB 10Krpm 16MB cache Drives ($-415.00) 8 x SAS2 300GB 15Krpm 16MB cache Drives ($305.00) 8 x 500GB SAS2 2.5in 7200rpm Drives ($-30.00) 8 x 500 GB SATA3 7200rpm Hard Drives ($-1010.00) 8 x 750 GB SATA3 7200rpm Hard Drives ($-910.00) 8 x 1.0 TB SATA3 7200rpm Hard Drives ($-510.00) 8 x 2.0 TB SATA3 7200rpm Hard Drives ($-30.00) 8 x 3.0 TB SATA3 7200rpm Hard Drives ($715.00) 8 x 4.0 TB SATA3 7200rpm Hard Drives ($2120.00) 24 x 320 GB SATA3 7200rpm Hard Drives 8 x SAS2 2.0TB 16MB 7200rpm Hard Drives ($250.00) 8 x SAS2 3.0TB 16MB 7200rpm Hard Drives ($1525.00)	24 x 320 GB SATA3 7200rpm Hard Drives
  OS Drive	none ($-70.00) 320 GB SATA3 7200rpm Hard Drive 500 GB SATA3 7200rpm Hard Drive ($15.00) 750 GB SATA3 7200rpm Hard Drive ($30.00) 1.0 TB SATA3 7200rpm Hard Drive ($100.00) 2.0 TB SATA3 7200rpm Hard Drive ($180.00) 3.0 TB SATA3 7200rpm Hard Drive ($275.00) 4.0 TB SATA3 7200rpm Hard Drive ($450.00)	320 GB SATA3 7200rpm Hard Drive
  PCI	none Dual port Intel GbE Network card ($195.00) Single port 10/100 Network card ($30.00) 10GbE Intel X520-T2 2-port RJ-4 network ($940.00) 10GbE Intel PCI-E SFP+ Fiber Optic network ($815.00) 10GbE Universal 2-port CX4 copper network ($470.00) Single Intel 10/100 Network card ($35.00) 4 port Network card 10/100/1000 ($505.00) Netgear GA311 Network adapter - PCI 10/100/1000 ($30.00) Intel Pro/1000MF Dual-port Fiber Server Adapter ($820.00) Wireless a/b/g PCI card ($75.00)	none
  PCI 2	none Dual port Intel GbE Network card ($195.00) Single port 10/100 Network card ($30.00) 10GbE Universal 2-port CX4 copper network ($470.00) 10GbE Intel PCI-E SFP+ Fiber Optic network ($815.00) 10GbE Intel X520-T2 2-port RJ-4 network ($940.00) Single Intel 10/100 Network card ($35.00) 4 port Network card 10/100/1000 ($505.00) Netgear GA311 Network adapter - PCI 10/100/1000 ($30.00) Intel Pro/1000PT Quad Port Server Adapter ($540.00)	none
  Add-ons	none 3ware RAID card Battery Backup option ($145.00)	none
  Rails and Brackets	none Sliding Rails, 20", for 2U-4U chassis ($55.00) Sliding Rails, 26", for 2U-4U chassis ($60.00) Center Mount Brackets for 2U-4U chassis ($20.00) Rear Mount Brackets for 2U-4U chassis ($20.00)	none
  Keyboard and Mouse	none Logitech 3 Button PS/2 Mouse ($15.00) PS/2 Keyboard and Optical Mouse ($55.00) KeyTronic Keyboard standard PS/2 ($25.00)	none
  Operating System	OpenBSD OpenBSD/amd64 PCLinuxOS Puppy Linux FreeNAS FreeBSD legacy FreeBSD production FreeBSD/amd64 NetBSD/amd64 Gentoo Linux NetBSD Ubuntu Linux 12.04 LTS Server Edition Ubuntu Linux 13.04 Server Edition Ubuntu Linux 13.04 Desktop Edition Ubuntu Linux 12.04 LTS Desktop Edition Mandriva Linux CentOS Linux 5.x current Fedora Linux 18 CentOS Linux 6.x current Fedora Linux 17 Red Hat® Linux Enterprise Workstation ($245.00) Fedora Core 2 x86_64 Novell SUSE Linux Enterprise Server 11 ($345.00) OpenSUSE Debian Linux - testing Debian Linux - development Debian Linux - stable v6.0.x	FreeBSD/amd64
  Donation target	The FreeBSD Foundation The OpenSSH Project Electronic Frontier Foundation The OpenBSD Project Other Open Source Project (please state in Notes) No donation	Electronic Frontier Foundation
  Donation amount	No donation ($-5.00) $5.00 $10.00 ($10.00) $25.00 ($30.00) $50.00 ($60.00)	$5.00
  Warranty	Standard 1yr full /3yr limited warranty Extended 2yr full / 3yr limited warranty ($135.00) Premium full 3yr warranty ($270.00)	Standard 1yr full /3yr limited warranty
