• eRacks/QUBE

  This high-performance small form factor cube could be an efficient desktop workstation, or multimedia PC for your living room, or even a mobile gaming box for your next LAN party!

  This eRacks system design is both powerful enough to use for gaming, yet quiet enough for an entertainment system.

  The power supply is 80 PLUSŽ certified, ensuring that it consumes less electricity and saves you money on your power bill, with no reduction in quality performance!

  Standard Video and Audio are both integrated on the motherboard. Upgrade audio and video with additional cards if desired, by choosing options in the PCI or PCI-e slots. TV tuner cards are also possible to add - see PCI options.

  As with all eRacks desktop systems, installation and configuration of your choice of operating system and desktop environment is included. Please note any special requests in the Notes field of your order.

  Zimbra Desktop installation available - see Software dropdown choices.

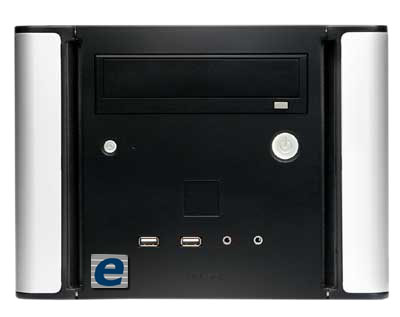

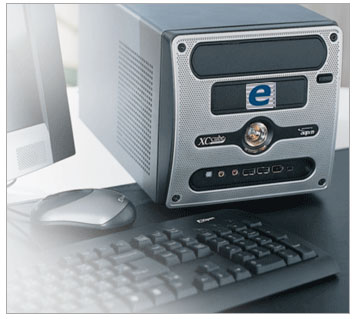

  more photos

  The default configuration includes: Chassis: Black 10.6in(H) x 7.9in(W) x 13.2in(D) / 26.9cm(H) x 20.1cm(W) x 33.5cm(D) Weight: 13.1lbs (5.9kgs) or more depending on components Power Supply:Quiet 80 PLUSŽ Certified 350 Watt custom power supply Motherboard: Socket 775 supports Intel Core 2 Extreme/ Core 2 Quad/ Core 2 Duo/ Pentium Dual-Core/ Pentium D/ Pentium 4/ Celeron 400 series/ Celeron D Processors; FSB 1333/1066/800MHz Drives: DVDRW Dual Layer, floppy, and SATA2 Hard Drives Memory: 2x 240pin DDR2-800(OC)/667 DIMMs, Max Capacity 4GB Audio: integrated Realtek ALC662 6-Channel HD Audio CODEC Video: integrated nVidia GeForce 7050 Graphics Controller, Max Memory Share upto 512MB Front connectors: 2 USB; 1 x Audio In & Out Expansion Slots: 1x PCI-Express x16 Slot, 1x PCI-Express x1 Slot, 2x PCI Slots LAN:onboard 10/100 Ethernet OS: Ubuntu Linux operating system installed as default. Other choices in dropdown. Upgrade Options: Additional network connectivity, graphics, audio, TV Tuner & FM Radio card, and more. Please specify any custom requests. Need a quiet system? See Modifications dropdown choice below.

  The price of the default configuration is $795.

• Product features / specs empty
•







• Option	Choices	More Info	Add/Subtract
  Chassis	QUBE chassis: 10.6in(H) x 7.9in(W) x 13.2in(D)	QUBE chassis: 10.6in(H) x 7.9in(W) x 13.2in(D)
  Modifications	none Quietize: low-noise components ($165.00)	none
  Motherboard	eRacks Socket 775 Core2 Duo 1333FSB motherboard	eRacks Socket 775 Core2 Duo 1333FSB motherboard
  Processor	Intel Core 2 Duo E7300 2.66GHz 1066MHz 3MB CPU ($-10.00) Intel Core 2 Duo E7400 2.88GHz 1066MHz 3MB CPU ($-5.00) Intel Core 2 Duo E7500 2.93GHz 1066MHz 3MB CPU Intel Core 2 Duo E8300 2.83GHz 1333MHz 6MB CPU ($25.00) Intel Core 2 Duo E8600 3.33GHz 1333MHz 6MB CPU ($200.00) Intel Core 2 Quad Q9550 2.83GHz 1333MHz 12MB CPU ($205.00)	Intel Core 2 Duo E7500 2.93GHz 1066MHz 3MB CPU
  Memory DDR2	512MB DDR2 667MHz ($-5.00) 1GB DDR2 667MHz ($5.00) 4GB DDR2 667MHz (2 x 2GB) ($135.00) 2GB DDR2 667MHz (2 x 1GB) ($35.00) 512MB DDR2 800MHz 1GB DDR2 800MHz ($10.00) 2GB DDR2 800MHz (2 x 1GB) ($45.00) 4GB DDR2 800MHz ($110.00)	512MB DDR2 800MHz
  5.25 inch Bay	Blu-Ray Reader 4x SATA 2MB ($45.00) Blu-Ray Burner ($205.00) DVDRW Dual Layer Tape Drive AIT-3 Sony (2U chassis req) ($2005.00) Tape Drive DDS-4 Sony Storage (2U chassis req) ($695.00) Tape Drive Quantum/Seagate DAT72 (2U chassis req) ($700.00) Tape Drive HP Storageworks DAT72 (2U chassis req) ($840.00) Tape Drive IBM DAT72 SCSI Interface (2U chassis) ($1095.00) Tape Drive DLT-V4 Quantum (2U chassis req) ($1170.00)	DVDRW Dual Layer
  Internal HD Bay	32 GB SATA II 2.5" SSD R 245 W 60 MB/s ($60.00) 64 GB SATA2 2.5" SSD R 270 W 230 MB/s ($155.00) 128 GB SATA2 2.5" SSD R 270 W 230 MB/s ($220.00) 256 GB SATA2 2.5" SSD R 270 W 230 MB/s ($755.00) 512 GB SATA2 2.5" SSD R 270 W 180 MB/s ($1320.00) 250 GB SATA II Hard Drive 500 GB SATA II Hard Drive ($40.00) 750 GB SATA II Hard Drive ($75.00) 1 TB SATA II Hard Drive ($115.00) 2 TB SATA II Hard Drive ($205.00) 2.5 TB SATA II Hard Drive ($230.00) 3 TB SATA II Hard Drive ($250.00)	250 GB SATA II Hard Drive
  PCI 1	none Single port GbE Network card ($55.00) Single port 10/100 Network card ($30.00) Dual port Intel GbE Network card ($195.00) Quad Port Intel GbE Network card ($505.00) 10GbE Intel PCI-E SFP+ Fiber Optic network ($815.00) 10GbE Intel X520-T2 2-port RJ-4 network ($940.00) 10GbE Universal 2-port CX4 copper network ($470.00) 4 port Network card 10/100 32-bit routerboard ($135.00) Wireless a/b/g PCI card ($75.00) Asus My Cinema P7131 ($50.00) Hauppage WinTV-HVR-1110 TV Tuner Card ($110.00) HDTV HD-5500 TV Tuner Card ($160.00) Sound Blaster Audigy SE ($35.00) Sound Blaster X-Fi Xtreme Audio ($90.00)	none
  PCI 2	none Single port 10/100 Network card ($30.00) Single port GbE Network card ($55.00) Quad Port Intel GbE Network card ($505.00) Dual port Intel GbE Network card ($195.00) 10GbE Intel PCI-E SFP+ Fiber Optic network ($815.00) 10GbE Intel X520-T2 2-port RJ-4 network ($940.00) 10GbE Universal 2-port CX4 copper network ($470.00) 4 port Network card 10/100 32-bit routerboard ($135.00) Wireless a/b/g PCI card ($75.00) HDTV HD-5500 TV Tuner Card ($160.00) Hauppage WinTV-HVR-1110 TV Tuner Card ($110.00) Asus My Cinema P7131 ($50.00) Sound Blaster Audigy SE ($35.00) Sound Blaster X-Fi Xtreme Audio ($90.00)	none
  PCI-e	none 10GbE Intel PCI-E SFP+ Fiber Optic network ($815.00) 10GbE Intel X520-T2 2-port RJ-4 network ($940.00) 10GbE Universal 2-port CX4 copper network ($470.00) HighPoint RocketRAID 1720 2-Port RAID Controller ($95.00)	none
  Keyboard and Mouse	none Logitech 3 Button PS/2 Mouse ($15.00) PS/2 Keyboard and Optical Mouse ($55.00) KeyTronic Keyboard standard PS/2 ($25.00) Logitech Optical Mouse with scroll wheel ($25.00)	none
  Monitor	none Monitor LCD 20in 1680 x 1050, 2500:1 ($270.00) Monitor LCD 17in 1280 x 1024, 1000:1 ($190.00) Monitor LCD 19in 1440 x 900, 2000:1 ($235.00) Monitor LCD 22in 1680 x 1050, 2500:1 ($285.00) Monitor LCD 21.1in 1920 x 1080, 12000:1 ($285.00) Monitor LCD 17in 1400 x 900, 500:1 ($205.00) Monitor LCD 24in 1920 x 1200, 10000:1 ($575.00)	none
  Operating System	OpenBSD PCLinuxOS Puppy Linux FreeBSD legacy FreeBSD production Gentoo Linux NetBSD SimplyMEPIS Linux 11 Ubuntu Linux 12.04 LTS Server Edition Ubuntu Linux 13.04 Server Edition Ubuntu Linux 13.04 Desktop Edition Ubuntu Linux 12.04 LTS Desktop Edition Mandriva Linux ELX Linux Linux Mint 13 CentOS Linux 5.x current Fedora Linux 18 CentOS Linux 6.x current Fedora Linux 17 OpenSUSE Debian Linux - development Debian Linux - testing Debian Linux - stable v6.0.x Xandros Deluxe ($135.00) Xandros Standard ($55.00) No OS - (tested with Ubuntu) MS Windows 7 Home Premium ($140.00) MS Windows 7 Professional ($190.00)	Ubuntu Linux 12.04 LTS Desktop Edition
  Software	default Zimbra Desktop	default
  Donation target	The FreeBSD Foundation Electronic Frontier Foundation The OpenBSD Project Other Open Source Project (please state in Notes) The OpenSSH Project No donation	Electronic Frontier Foundation
  Donation amount	No donation ($-5.00) $5.00 $10.00 ($10.00) $25.00 ($30.00) $50.00 ($60.00)	$5.00
  Warranty	Standard 1yr full /3yr limited warranty Extended 2yr full / 3yr limited warranty ($135.00) Premium full 3yr warranty ($270.00)	Standard 1yr full /3yr limited warranty
