eRacks/LCD6U

Overview
Specifications
Photos
Configure
  • eRacks/LCD6U

    This monitor is a rack-mountable 15inch TFT display. It provides a high contrast, wide viewing angle dispay in minimal rack depth. This TFT display connects directly to a standard video output via a 15-pin VGA connector and does not require any additional drivers or proprietary interface adapters. Optional features are the S-video or S-video & DVI inputs.

    This rackmountable monitor takes up 6U of rack space.
    Features include:

    • Styled 6mm aluminium front panel
    • Space-saving - Extra rackmounting space from the back of LCD panel
    • Rugged metal construction, all black cladding is pre-treated and finished in powder coated paint
    • Built-in on screen display controlled by integral membrane switches
    • Side to side wide-angle viewing as CRT monitor
    • Standard D-sub 15-pin VGA input connector
    • Lower power consumption
    • Supplied with 12V 5A remote power adapter (single power source)
    • All mounting hardware included.
    Specifications:

    • Panel: 15" LCD Panel
    • Display type: TFT/LCD active matrix color
    • Resolution: 1024 x 768
    • Response time: Tr=5ms/Tf=20ms
    • Contrast ratio: 400:1 typical
    • Brightness: 250 cd/m2 typical
    • Pixel pitch: 0.297mm (H) x 0.297mm (W)
    • Panel color: 16.7 million display colors
    • Viewing angel: 115o (Horiz.)/100o (Vert.)
    • Storage temp.: -20şC to 60şC
    • Operating temp.: 0şC to 50şC
    • MTBF: 25,000 hours
    • Power supply: 110V 220V AC Input, 12V 5A Output
    • Dimension: 48(W) x 26.5(H) x 4(D)cm
    • Weight (lbs): 16.00
    Please inquire regarding availability of other models.


  • Product features / specs empty

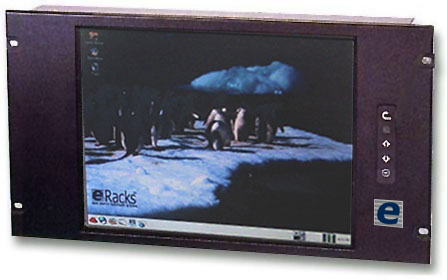

  • lcd6u_front.jpeg
  • Option Choices More Info Add/Subtract
    Monitor 15in LCD Panel 6U Rackmount
