• eRacks/STUDIO7   The eRacks / STUDIO7 is a professional-grade audio creation / production computer system, hardware-optimized for studio-level audio and video work. The system is Linux-based, with an Intel Core i7 CPU. The system comes loaded with a set of Open Source audio and video software applications. No licenses, no upgrade fees, ever. Copy and distribute freely. Come join, contribute, and share with the Open Source audio community, where users and developers work together. Choose your preferred suite of either Ubuntu Studio or 64 Studio digital audio / video software. The eRacks/STUDIO7 is available in a rackmount system. It can accommodate up to 24 GB of DDR3 memory. The Rackmount chassis and desktop options can accommodate 4 x 5.25 bays, which could be used as removable hot-swap storage or DVD-ROM drives. Please contact us to discuss your specific requirements. eRacks/STUDIO 2011 NAMM flier     eRacks/STUDIO 2008 NAMM flier     Ubuntu Studio Community Forum     64Studio Forum     eRacks/STUDIO Blog

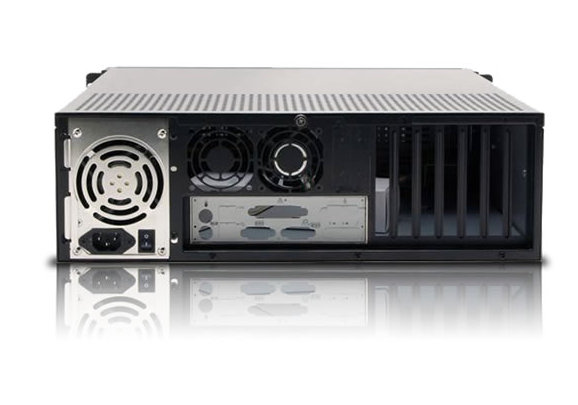

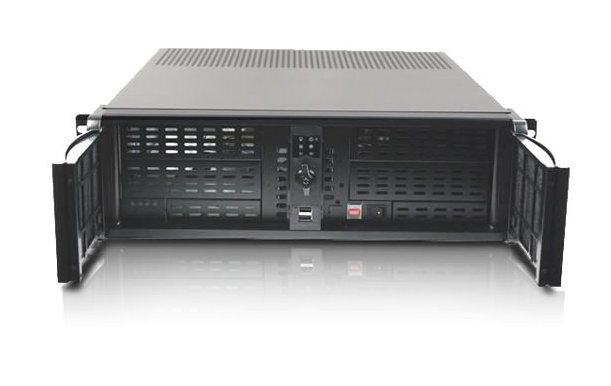

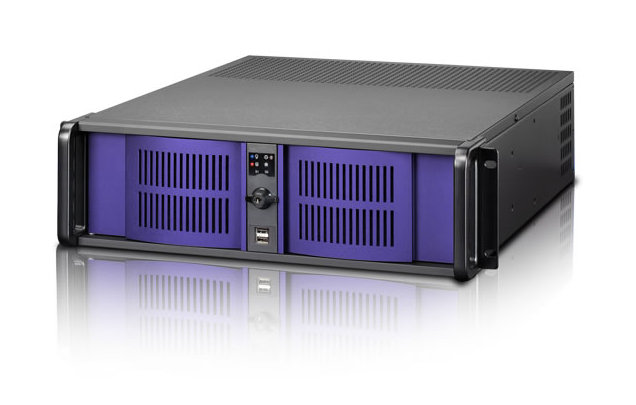

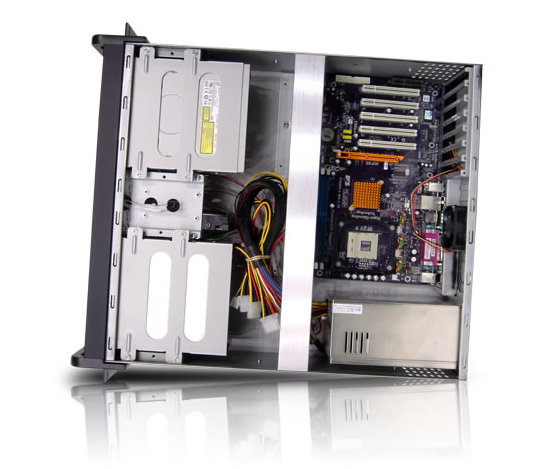

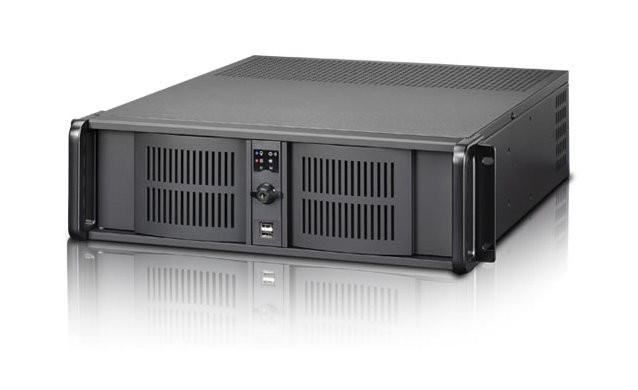

  more photos, including other color chassis choices

  The system includes: Default Chassis: 3U Rackmount: Dimensions (WxHxD) 19 x 5.25 x 20.8 inch chassis Option chassis: Front Bezel colors include black, blue, red, gold, silver. Note: Colors (except black) may require extra time for delivery. See photos for chassis choices. Power Supply: Media: TFX 300W PFC, Rackmount: 400W PS, Desktop: 400W PS Motherboard: Socket 1156 Intel H55 DDR3 CrossFireX GbE Audio: M-Audio 24-bit/96kHz digital audio card, 36-bit embedded DSP, low-latency Video: integrated on motherboard, option of NVidia cards Processor: Intel Core i7 CPU Drives: DVD and SATAII Hard Drive Memory: Up to 16GB DDR3 PCI Slot: 2 x PCI slots, PCI-e for additional network connectivity, graphics, audio, etc LAN: integrated Gigabit Ethernet Ports:Front USB 2.0 x 2 Connector Software: Choice of 64 Studio or Ubuntu Studio installed and configured. Please specify any custom requests. Monitor, keyboard and mouse are not included in the default configuration and are optional. This configuration's price is $2200.

• Product features / specs empty
•









• Option	Choices	More Info	Add/Subtract
  Chassis	STUDIO7 rackmount - 21in depth - Specify color	STUDIO7 rackmount - 21in depth - Specify color
  Motherboard	eRacks Core i7 Extreme Intel X58 DDR3 GbE	eRacks Core i7 Extreme Intel X58 DDR3 GbE
  Processor	Intel i7 Quad-core 3.06GHz 6.4GT/s 8MB i7-950 CPU Intel i7 Quad-core 3.2GHz 4.8GT/s 8MB i7-960 CPU ($50.00) Intel i7 Six-core 3.2GHz 4.8GT/s 12MB i7-970 CPU ($385.00) Intel i7 Six-core 3.33GHz 6.4GT/s 12MB i7-980 CPU ($940.00) Intel i7 Six-core 3.46GHz 6.4GT/s 12MB i7-990 CPU ($1000.00)	Intel i7 Quad-core 3.06GHz 6.4GT/s 8MB i7-950 CPU
  Memory DDR3	2 GB DDR3 non-ECC non-REG 1333MHz ($-15.00) 4 GB DDR3 non-ECC non-REG 1333MHz 8 GB DDR3 non-ECC non-REG 1333MHz ($55.00) 12 GB DDR3 non-ECC non-REG 1333MHz ($105.00) 24 GB DDR3 non-ECC non-REG 1333MHz ($265.00) 2 GB DDR3 1800MHz ($70.00) 4 GB DDR3 1800MHz ($190.00) 8 GB DDR3 1800MHz ($435.00) 12 GB DDR3 1800MHz ($675.00) 24 GB DDR3 1800MHz ($1405.00)	4 GB DDR3 non-ECC non-REG 1333MHz
  Video card	integrated on motherboard NVIDIA GTX275 1280MB 2DVI DDR3 ($345.00) NVIDIA GTX285 1GB 2DVI-I/DHCP TV-out SLI ($505.00) NVIDIA GTX260 896MB 2xDVI video card ($300.00) NVIDIA GeForce 520GT 2GB DVI HDMI video card ($110.00) NVIDIA GeForce 520GT 1GB DVI/VGA video card ($75.00) NVIDIA GeForce 620GT 1GB DVI/VGA/HDMI video card ($95.00)	integrated on motherboard
  Audio	None (use an ALSA-compatible sound card) ($-80.00) M-Audio 24/96 PCI Sound Card RME HDSP 9632 32 ch 24 Bit/192kHz MIDI Audio Card ($635.00) M-Audio Delta 1010 recording PCI/Rack ($435.00) M-Audio Delta 1010LT mobile recording PCI ($165.00)	M-Audio 24/96 PCI Sound Card
  External Audio	none PreSonus Firepod FP10 Firewire interface ($655.00) M-Audio Mobile Pre USB interface ($230.00) M-Audio Transit mobile 24-bit/96kHz USB ($100.00) Behringer UCA 202 Ultra 2 In/2 Out USB interface ($45.00) Behringer BCF2000 USB/MIDI controller w/8 Faders ($205.00) Behringer BCF2000-WH USB/MIDI controller (WHITE) ($205.00) Behringer UCG 102 Guitar interface USB ($60.00)	none
  5.25 inch Bay	Blu-Ray Reader 4x SATA 2MB ($45.00) Blu-Ray Burner ($205.00) DVDRW Dual Layer	DVDRW Dual Layer
  External Storage	none 2TB Sans Digital MobilSTOR MS2UT USB ($615.00) 4TB Sans Digital MobilSTOR TR4X USB ($1175.00)	none
  SATA II HD 1	32 GB SATA II 2.5" SSD R 245 W 60 MB/s ($-40.00) 64 GB SATA2 2.5" SSD R 270 W 230 MB/s ($40.00) 128 GB SATA2 2.5" SSD R 270 W 230 MB/s ($105.00) 256 GB SATA2 2.5" SSD R 270 W 230 MB/s ($640.00) 512 GB SATA2 2.5" SSD R 270 W 180 MB/s ($1205.00) 500 GB SATA II Hard Drive ($-55.00) 750 GB SATA II Hard Drive ($-30.00) 1 TB SATA II Hard Drive 2 TB SATA II Hard Drive ($90.00) 2.5 TB SATA II Hard Drive ($115.00) 3 TB SATA II Hard Drive ($140.00)	1 TB SATA II Hard Drive
  SATA II HD 2	none 32 GB SATA II 2.5" SSD R 245 W 60 MB/s ($150.00) 64 GB SATA2 2.5" SSD R 270 W 230 MB/s ($245.00) 128 GB SATA2 2.5" SSD R 270 W 230 MB/s ($310.00) 256 GB SATA2 2.5" SSD R 270 W 230 MB/s ($845.00) 512 GB SATA2 2.5" SSD R 270 W 180 MB/s ($1410.00) 500 GB SATA II Hard Drive ($130.00) 750 GB SATA II Hard Drive ($165.00) 1 TB SATA II Hard Drive ($205.00) 2 TB SATA II Hard Drive ($290.00) 2.5 TB SATA II Hard Drive ($315.00) 3 TB SATA II Hard Drive ($340.00)	none
  SATA II HD 3	none 32 GB SATA II 2.5" SSD R 245 W 60 MB/s ($150.00) 64 GB SATA2 2.5" SSD R 270 W 230 MB/s ($245.00) 128 GB SATA2 2.5" SSD R 270 W 230 MB/s ($310.00) 256 GB SATA2 2.5" SSD R 270 W 230 MB/s ($845.00) 512 GB SATA2 2.5" SSD R 270 W 180 MB/s ($1410.00) 500 GB SATA II Hard Drive ($130.00) 750 GB SATA II Hard Drive ($165.00) 1 TB SATA II Hard Drive ($205.00) 2 TB SATA II Hard Drive ($290.00) 2.5 TB SATA II Hard Drive ($315.00) 3 TB SATA II Hard Drive ($340.00)	none
  SATA II HD 4	none 32 GB SATA II 2.5" SSD R 245 W 60 MB/s ($150.00) 64 GB SATA2 2.5" SSD R 270 W 230 MB/s ($245.00) 128 GB SATA2 2.5" SSD R 270 W 230 MB/s ($310.00) 256 GB SATA2 2.5" SSD R 270 W 230 MB/s ($845.00) 512 GB SATA2 2.5" SSD R 270 W 180 MB/s ($1410.00) 500 GB SATA II Hard Drive ($130.00) 750 GB SATA II Hard Drive ($165.00) 1 TB SATA II Hard Drive ($205.00) 2 TB SATA II Hard Drive ($290.00) 2.5 TB SATA II Hard Drive ($315.00) 3 TB SATA II Hard Drive ($340.00)	none
  PCI	none Dual port Intel GbE Network card ($195.00) Quad Port Intel GbE Network card ($505.00) Single port 10/100 Network card ($30.00) 10GbE Intel PCI-E SFP+ Fiber Optic network ($815.00) 10GbE Universal 2-port CX4 copper network ($470.00) 10GbE Intel X520-T2 2-port RJ-4 network ($940.00) Wireless a/b/g PCI card ($75.00) HDTV HD-5500 TV Tuner Card ($160.00) Hauppage WinTV-HVR-1110 TV Tuner Card ($110.00) Asus My Cinema P7131 ($50.00) 3ware 9650SE 4-port RAID LP PCI-E ($435.00) LSI Logic MegaRAID SATA II 8204ELP 4-Port ($230.00)	none
  Rail kits	none Rail kit, one pair 20" (20-26" depth) ($45.00) Rear Mount Brackets for 2U-4U chassis ($20.00) Center Mount Brackets for 2U-4U chassis ($20.00)	none
  Keyboard and Mouse	none Black Keyboard with standard mouse ($55.00)	none
  Monitor	none Monitor LCD 21.1in 1920 x 1080, 12000:1 ($285.00) Monitor LCD 24in 1920 x 1200, 10000:1 ($575.00) Monitor LCD 22in 1680 x 1050, 2500:1 ($285.00) Monitor LCD 20in 1680 x 1050, 2500:1 ($270.00) Monitor LCD 17in 1280 x 1024, 1000:1 ($190.00) Monitor LCD 17in 1400 x 900, 500:1 ($205.00) Monitor LCD 19in 1440 x 900, 2000:1 ($235.00)	none
  Software	64 Studio v2.0 32bit Debian GNU/Linux 64 Studio v2.0 64bit Debian GNU/Linux Ubuntu Studio 12.04 LTS	Ubuntu Studio 12.04 LTS
  Donation target	64 Studio Project The OpenBSD Project Electronic Frontier Foundation Other Open Source Project (please state in Notes) The FreeBSD Foundation The OpenSSH Project No donation	64 Studio Project
  Donation amount	No donation ($-5.00) $5.00 $10.00 ($10.00) $25.00 ($30.00) $50.00 ($60.00) $75.00 ($95.00)	$5.00
  Warranty	Standard 1yr full /3yr limited warranty Extended 2yr full / 3yr limited warranty ($135.00) Premium full 3yr warranty ($270.00)	Standard 1yr full /3yr limited warranty
