eRacks/STUDIO5

Overview

Specifications

Photos

Configure

• eRacks/STUDIO5   The eRacks / STUDIO5 is a professional-grade audio creation / production computer system, hardware-optimized for studio-level audio and video work. The system is Linux-based, uses the new 2010 Intel Core i5 CPU. The system comes loaded with a set of Open Source audio and video software applications. No licenses, no upgrade fees, ever. Copy and distribute freely. Come join, contribute, and share with the Open Source audio community, where users and developers work together. The eRacks/STUDIO5 is available in a media chassis, a rackmount system, or a desktop. It can accommodate up to 8 GB of DDR3 memory. The Rackmount chassis and desktop options can accommodate 4 x 5.25 bays, which could be used as removable hot-swap storage or DVD-ROM drives. Please contact us to discuss your specific requirements. eRacks/STUDIO 2011 NAMM flier     eRacks/STUDIO 2008 NAMM flier     Ubuntu Studio Community Forum     64Studio Forum     eRacks/STUDIO Blog

  more photos, including rackmount and desktop chassis choices

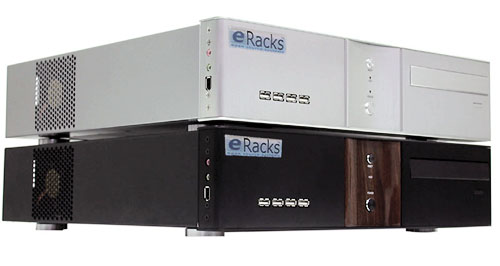

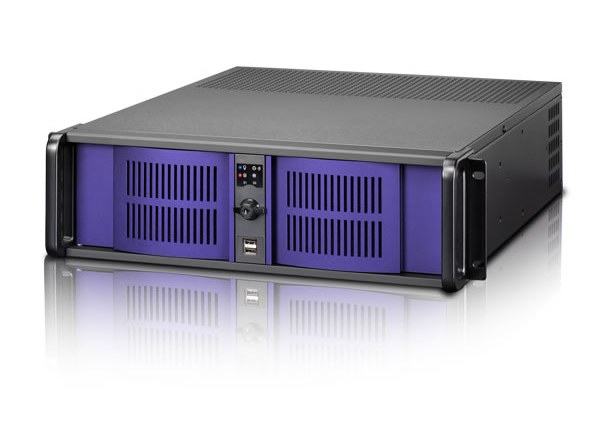

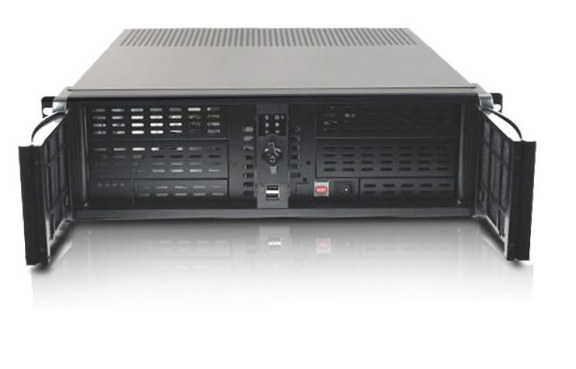

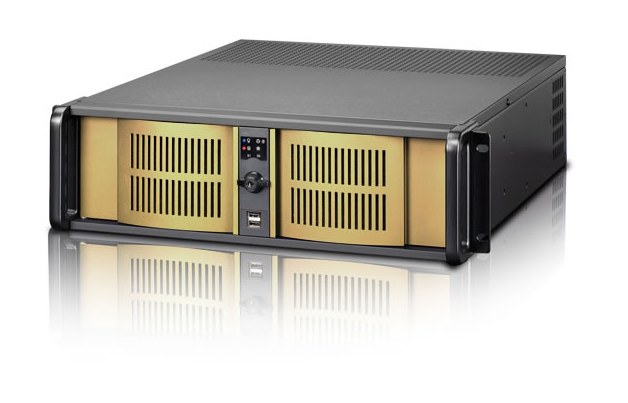

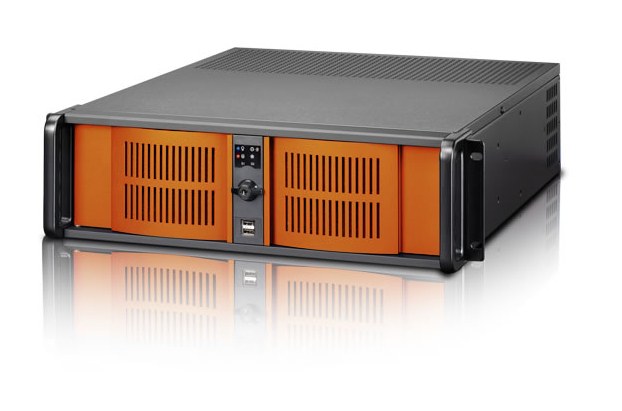

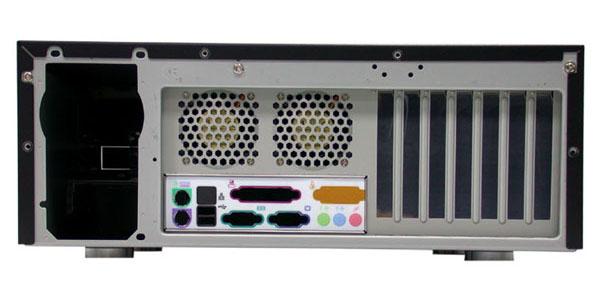

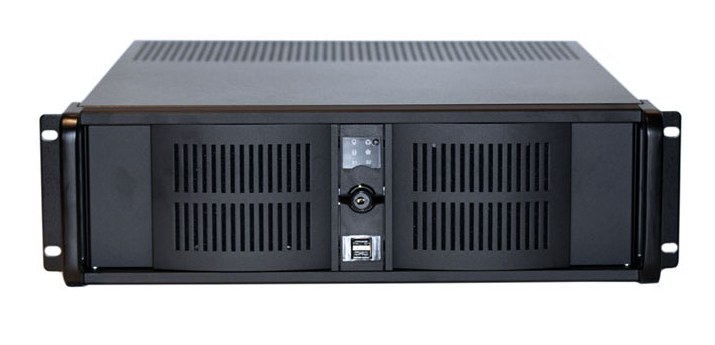

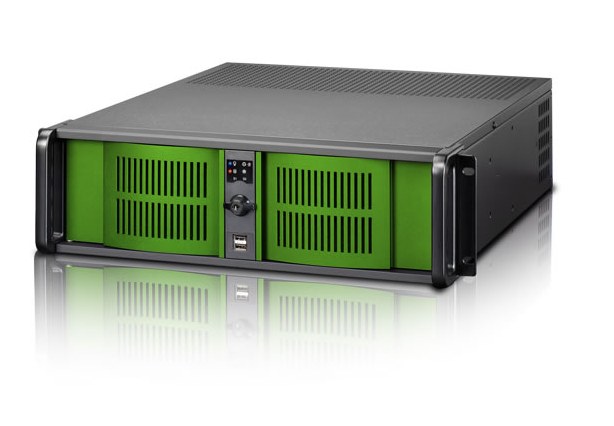

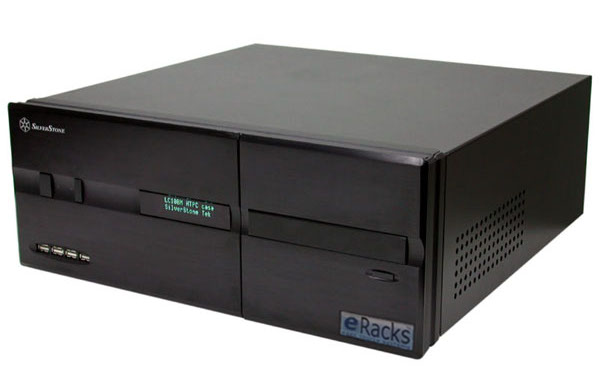

  The system includes: Default Chassis: Media Chassis: Dimensions (WxHxD) 16.7 x 3.8 x 16.9 inch or 424 x 96 x 430 mm Option chassis: 3U Rackmount: Dimensions (WxHxD) 19 x 5.25 x 20.8 inch or 482.6 x 133.4 x 528.3 mm colored doors Option chassis: Desktop: Dimensions (WxHxD) 18.11 x 8.27 x 20.67 or 460 x 210 x 525 mm with door. See photos for chassis choices. Power Supply: Media: TFX 300W PFC, Rackmount: 400W PS, Desktop: 400W PS Motherboard: Socket 1156 Intel H55 DDR3 CrossFireX GbE Audio: M-Audio 24-bit/96kHz digital audio card, 36-bit embedded DSP, low-latency Video: integrated on motherboard, option of a selection of NVidia cards Processor: Intel Core i5 CPU Drives: DVD and SATAII Hard Drive Memory: Up to 8GB DDR3 PCI Slot: 2 x PCI slots, PCI-e for additional network connectivity, graphics, audio, etc LAN: integrated Gigabit Ethernet Software: Choice of 64 Studio or Ubuntu Studio installed and configured. Please specify any custom requests. Monitor, keyboard and mouse are not included in the default configuration and are optional. This configuration's price is $1500.

• Product features / specs empty
•



















• Option	Choices	More Info	Add/Subtract
  Chassis	MEDIA chassis: SILVER 16.7x3.8x16.9inch 300W MEDIA chassis: BLACK/BROWN 16.7x3.8x16.9in 300W FRIDGE chassis: Alum Tower Chassis w/ Door ($10.00) STUDIO Rackmount 3U 400W PS - Specify door color ($35.00)	MEDIA chassis: BLACK/BROWN 16.7x3.8x16.9in 300W
  Motherboard	eRacks Core i7/i5/i3 1156 DDR3 CrossFireX GbE	eRacks Core i7/i5/i3 1156 DDR3 CrossFireX GbE
  Processor	Intel Core i5 Dual-core 3.20GHz 2.5GT/s i5-650 CPU Intel Core i5 Dual-core 3.33GHz 2.5GT/s i5-660 CPU ($35.00) Intel Core i5 Dual-core 3.46GHz 2.5GT/s i5-670 CPU ($155.00)	Intel Core i5 Dual-core 3.20GHz 2.5GT/s i5-650 CPU
  Memory DDR3	2 GB DDR3 non-ECC non-REG 1333MHz ($-15.00) 4 GB DDR3 non-ECC non-REG 1333MHz 8 GB DDR3 non-ECC non-REG 1333MHz ($55.00) 2 GB DDR3 1800MHz ($70.00) 4 GB DDR3 1800MHz ($190.00) 8 GB DDR3 1800MHz ($435.00)	4 GB DDR3 non-ECC non-REG 1333MHz
  Video card	integrated on motherboard NVIDIA GTX285 1GB 2DVI-I/DHCP TV-out SLI ($505.00) NVIDIA GTX260 896MB 2xDVI video card ($300.00) NVIDIA GTX275 1280MB 2DVI DDR3 ($345.00) NVIDIA GeForce 520GT 2GB DVI HDMI video card ($110.00) NVIDIA GeForce 520GT 1GB DVI/VGA video card ($75.00) NVIDIA GeForce 620GT 1GB DVI/VGA/HDMI video card ($95.00)	integrated on motherboard

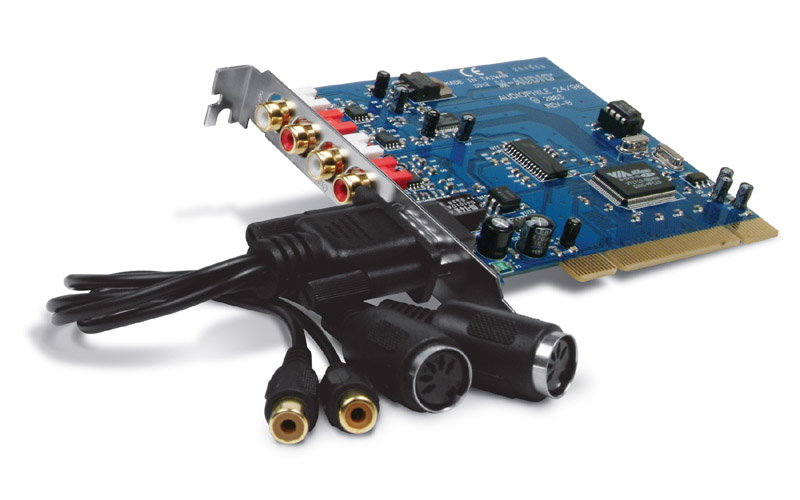

  Audio	M-Audio Delta 1010LT mobile recording PCI ($165.00) M-Audio Delta 1010 recording PCI/Rack ($435.00) RME HDSP 9632 32 ch 24 Bit/192kHz MIDI Audio Card ($635.00) M-Audio 24/96 PCI Sound Card None (use an ALSA-compatible sound card) ($-80.00)	M-Audio 24/96 PCI Sound Card
  External Audio	none M-Audio Transit mobile 24-bit/96kHz USB ($100.00) M-Audio Mobile Pre USB interface ($230.00) PreSonus Firepod FP10 Firewire interface ($655.00) Behringer UCG 102 Guitar interface USB ($60.00) Behringer BCF2000-WH USB/MIDI controller (WHITE) ($205.00) Behringer BCF2000 USB/MIDI controller w/8 Faders ($205.00) Behringer UCA 202 Ultra 2 In/2 Out USB interface ($45.00)	none

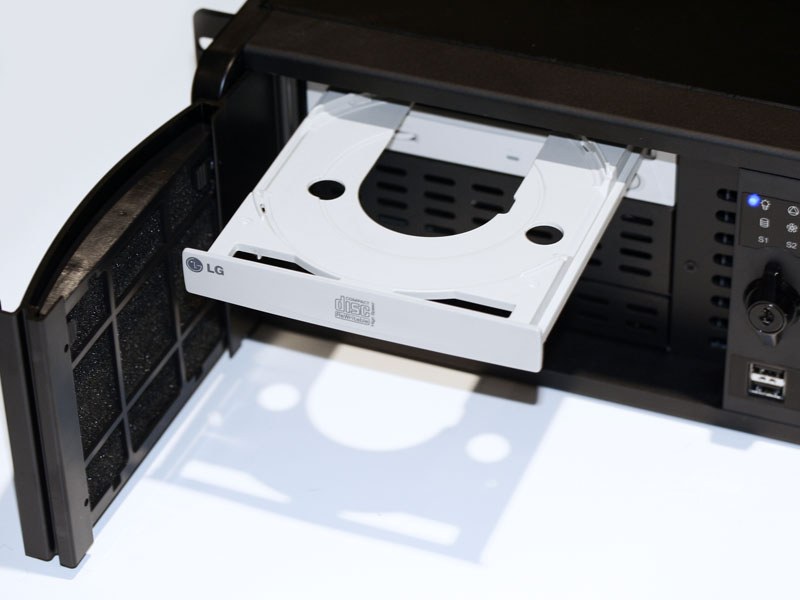

  5.25 inch Bay	Blu-Ray Reader 4x SATA 2MB ($45.00) Blu-Ray Burner ($205.00) DVDRW Dual Layer	DVDRW Dual Layer
  External Storage	none 2TB Sans Digital MobilSTOR MS2UT USB ($615.00) 4TB Sans Digital MobilSTOR TR4X USB ($1175.00)	none
  SATA II HD 1	32 GB SATA II 2.5" SSD R 245 W 60 MB/s ($-10.00) 64 GB SATA2 2.5" SSD R 270 W 230 MB/s ($80.00) 128 GB SATA2 2.5" SSD R 270 W 230 MB/s ($145.00) 256 GB SATA2 2.5" SSD R 270 W 230 MB/s ($680.00) 512 GB SATA2 2.5" SSD R 270 W 180 MB/s ($1245.00) 500 GB SATA II Hard Drive ($-25.00) 750 GB SATA II Hard Drive 1 TB SATA II Hard Drive ($40.00) 2 TB SATA II Hard Drive ($130.00) 2.5 TB SATA II Hard Drive ($155.00) 3 TB SATA II Hard Drive ($180.00)	750 GB SATA II Hard Drive
  SATA II HD 2	none 32 GB SATA II 2.5" SSD R 245 W 60 MB/s ($150.00) 64 GB SATA2 2.5" SSD R 270 W 230 MB/s ($245.00) 128 GB SATA2 2.5" SSD R 270 W 230 MB/s ($310.00) 256 GB SATA2 2.5" SSD R 270 W 230 MB/s ($845.00) 512 GB SATA2 2.5" SSD R 270 W 180 MB/s ($1410.00) 500 GB SATA II Hard Drive ($130.00) 750 GB SATA II Hard Drive ($165.00) 1 TB SATA II Hard Drive ($205.00) 2 TB SATA II Hard Drive ($290.00) 2.5 TB SATA II Hard Drive ($315.00) 3 TB SATA II Hard Drive ($340.00)	none
  PCI	none Quad Port Intel GbE Network card ($505.00) Single port 10/100 Network card ($30.00) Dual port Intel GbE Network card ($195.00) 10GbE Intel X520-T2 2-port RJ-4 network ($940.00) 10GbE Intel PCI-E SFP+ Fiber Optic network ($815.00) 10GbE Universal 2-port CX4 copper network ($470.00) Wireless a/b/g PCI card ($75.00) HDTV HD-5500 TV Tuner Card ($160.00) Hauppage WinTV-HVR-1110 TV Tuner Card ($110.00) Asus My Cinema P7131 ($50.00) 3ware 9650SE 4-port RAID LP PCI-E ($435.00) LSI Logic MegaRAID SATA II 8204ELP 4-Port ($230.00)	none
  Rail kits	none Rail kit, one pair 20" (20-26" depth) ($45.00) Center Mount Brackets for 2U-4U chassis ($20.00) Rear Mount Brackets for 2U-4U chassis ($20.00)	none
  Keyboard and Mouse	none Black Keyboard with standard mouse ($55.00)	none
  Monitor	none Monitor LCD 21.1in 1920 x 1080, 12000:1 ($285.00) Monitor LCD 17in 1400 x 900, 500:1 ($205.00) Monitor LCD 19in 1440 x 900, 2000:1 ($235.00) Monitor LCD 17in 1280 x 1024, 1000:1 ($190.00) Monitor LCD 20in 1680 x 1050, 2500:1 ($270.00) Monitor LCD 24in 1920 x 1200, 10000:1 ($575.00) Monitor LCD 22in 1680 x 1050, 2500:1 ($285.00)	none
  Software	Ubuntu Studio 12.04 LTS 64 Studio v2.0 64bit Debian GNU/Linux 64 Studio v2.0 32bit Debian GNU/Linux	Ubuntu Studio 12.04 LTS
  Donation target	Other Open Source Project (please state in Notes) The OpenSSH Project The FreeBSD Foundation 64 Studio Project Electronic Frontier Foundation The OpenBSD Project No donation	64 Studio Project
  Donation amount	No donation ($-5.00) $5.00 $10.00 ($10.00) $25.00 ($30.00) $50.00 ($60.00) $75.00 ($95.00)	$5.00
  Warranty	Standard 1yr full /3yr limited warranty Extended 2yr full / 3yr limited warranty ($135.00) Premium full 3yr warranty ($270.00)	Standard 1yr full /3yr limited warranty
