  eRacks/iDESQ3: An Intel i3 based highly-customizable Desktop System, configured with your choice of Linux Operating System.

  Intel's i3 processor allows for four-way multi-task processing with high performance using Hyper-Threading Technology.

  This system is expandable, upgradeable, convertible and quietizable. Just let us know what components you'd like inside. We'll build your system to order, install your choice of Operating System, and test it thoroughly.

  Prefer an AMD processor? Find your configuration at here.

  Zimbra Desktop installation available - see Software dropdown choices.

  Choose from the online configuration or request your own combination of components.
  The default configuration for this desktop system includes:

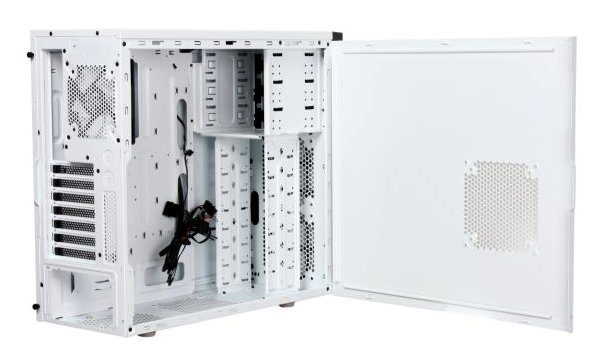

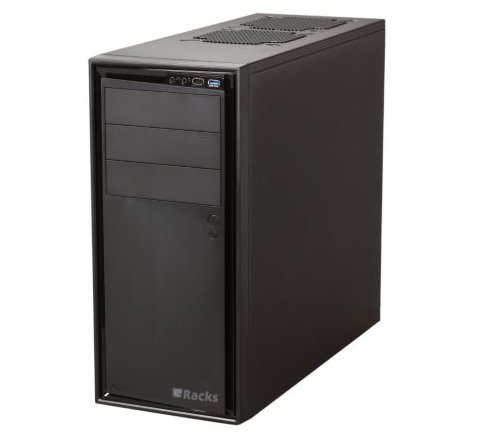

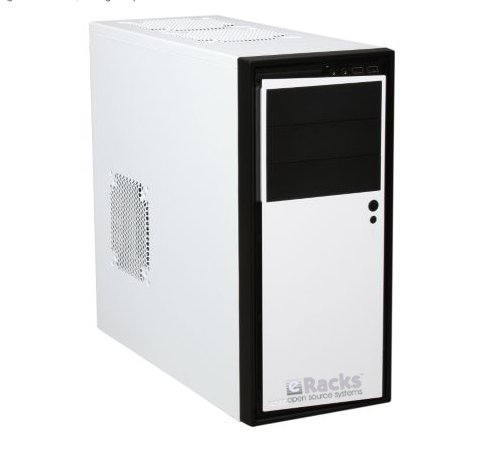

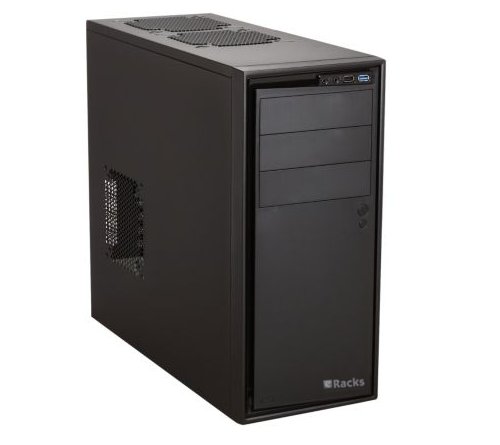

  Chassis: Desktop eRacks/iDESQ3 Mid-Tower Chassis, white (option for black chassis - see photos )
  Dimension (WxDxH): 19.5 x 7.7 x 17.3 inch (both white and black chassis)
  Motherboard:LGA 1155 Socket, Chipset H61, Micro ATX, supporting Intel i3 Processors
  Video: Default Nvidia GT 8400, additional graphics card choices
  Memory: 2×240pin DDR3 1066, 1333, up to 8GB
  Drives: 3 x SATA II / SSD Hard Drive Bays, DVDRW Drive (other options available)
  Operating System: Ubuntu Linux operating system installed as default.
  Environment: Choice of desktop environments including GNOME, KDE, and others (specify any other Open Source applications to be installed, in the Notes field of your order.)


• Product features / specs empty
•









• Option	Choices	More Info	Add/Subtract
  Chassis	iDESQ3 chassis, white 19.5 x 7.7 x 17.3in iDESQ3 chassis, black 19.5 x 7.7 x 17.3in ($15.00)	iDESQ3 chassis, white 19.5 x 7.7 x 17.3in
  Power Supply	Desktop 450W Power Supply Desktop 550W Power Supply ($15.00) Desktop 850W Power Supply ($80.00)	Desktop 450W Power Supply
  Modifications	none Quietize: low-noise components ($165.00)	none
  Motherboard	iDESQ3 i3/i5/i7 DDR3 GigE H61 Chipset motherboard	iDESQ3 i3/i5/i7 DDR3 GigE H61 Chipset motherboard
  Processor	Intel i3 2105 3.1GHz Dual Core 65w CPU Intel i3 2120T 2.6GHz Dual Core 35w CPU Intel i3 2100T 2.5GHz Dual Core 35w CPU Intel i3 2120 3.3GHz Dual Core 65w CPU ($10.00) Intel i3 2125 3.3GHz Dual Core 65w CPU ($15.00) Intel i3 2130 3.4GHz Dual Core 65w CPU ($20.00)	Intel i3 2105 3.1GHz Dual Core 65w CPU
  CPU Cooler	Standard CPU Cooler for Intel i7 Performance CPU Cooler for Intel i7 ($75.00) Premium CPU Cooler for Intel i7 ($135.00)	Standard CPU Cooler for Intel i7
  Memory DDR3	1 GB DDR3 non-ECC non-REG 1333MHz ($-10.00) 2 GB DDR3 non-ECC non-REG 1333MHz 4 GB DDR3 non-ECC non-REG 1333MHz ($20.00) 8 GB DDR3 non-ECC non-REG 1333MHz ($70.00) 1 GB 1066MHz DDR3 2 GB 1066MHz DDR3 ($30.00) 4 GB 1066MHz DDR3 ($90.00) 8 GB 1066MHz DDR3 ($210.00)	1 GB 1066MHz DDR3
  Video card	NVIDIA GeForce 520GT 2GB DVI HDMI video card NVIDIA GeForce 520GT 1GB DVI/VGA video card ($-25.00) NVIDIA GeForce GTX 550 1536MB ($70.00) NVIDIA GeForce GTX 560 1024 MB GDDR5 ($165.00) NVIDIA GeForce GTX 560 2GB 256-bit GDDR5 ($270.00) NVIDIA GeForce GTX 570 1280 MB GDDR5 ($340.00) NVIDIA GeForce GTX 580 1536 MB GDDR5 ($525.00) NVIDIA GeForce GTX 580 3G 384-bit GDDR5 ($705.00) NVIDIA GeForce GTX 590 3072MB 768-bit GDDR5 ($905.00)	NVIDIA GeForce 520GT 2GB DVI HDMI video card
  5.25 inch Bay	Zalman ZM-MFC2 fan controller power & temp monitor ($35.00) Zalman ZM-MFC1 fan controller 4 speed & 2 toggle ($5.00) Blu-Ray Reader 4x SATA 2MB ($45.00) Blu-Ray Burner ($205.00) DVDRW Dual Layer Tape Drive AIT-3 Sony (2U chassis req) ($2005.00) Tape Drive DDS-4 Sony Storage (2U chassis req) ($695.00) Tape Drive Quantum/Seagate DAT72 (2U chassis req) ($700.00) Tape Drive HP Storageworks DAT72 (2U chassis req) ($840.00) Tape Drive IBM DAT72 SCSI Interface (2U chassis) ($1095.00) Tape Drive DLT-V4 Quantum (2U chassis req) ($1170.00) Thermaltake Ibox storage compartment ($-20.00) Thermaltake X-Ray Beverage holder / Cig lighter ($-15.00) Internal 25-in-1 Card Reader (MS,CF, SD/MMC/SM) ($-5.00) Internal 7-in-1 Card Reader ($-15.00) Internal 5-in-1 Card Reader ($-20.00)	DVDRW Dual Layer
  5.25 inch Bay 2	none Zalman ZM-MFC1 fan controller 4 speed & 2 toggle ($40.00) Zalman ZM-MFC2 fan controller power & temp monitor ($75.00) Blu-Ray Reader 4x SATA 2MB ($80.00) Blu-Ray Burner ($245.00) DVDRW Dual Layer ($40.00) Tape Drive AIT-3 Sony (2U chassis req) ($2045.00) Tape Drive DDS-4 Sony Storage (2U chassis req) ($730.00) Tape Drive Quantum/Seagate DAT72 (2U chassis req) ($740.00) Tape Drive HP Storageworks DAT72 (2U chassis req) ($880.00) Tape Drive IBM DAT72 SCSI Interface (2U chassis) ($1135.00) Tape Drive DLT-V4 Quantum (2U chassis req) ($1210.00) Thermaltake Ibox storage compartment ($15.00) Thermaltake X-Ray Beverage holder / Cig lighter ($20.00) Internal 25-in-1 Card Reader (MS,CF, SD/MMC/SM) ($35.00) Internal 7-in-1 Card Reader ($20.00) Internal 5-in-1 Card Reader ($10.00)	none
  5.25 inch Bay 3	none Zalman ZM-MFC2 fan controller power & temp monitor ($75.00) Zalman ZM-MFC1 fan controller 4 speed & 2 toggle ($40.00) Blu-Ray Reader 4x SATA 2MB ($80.00) Blu-Ray Burner ($245.00) DVDRW Dual Layer ($40.00) Tape Drive AIT-3 Sony (2U chassis req) ($2045.00) Tape Drive DDS-4 Sony Storage (2U chassis req) ($730.00) Tape Drive Quantum/Seagate DAT72 (2U chassis req) ($740.00) Tape Drive HP Storageworks DAT72 (2U chassis req) ($880.00) Tape Drive IBM DAT72 SCSI Interface (2U chassis) ($1135.00) Tape Drive DLT-V4 Quantum (2U chassis req) ($1210.00) Thermaltake Ibox storage compartment ($15.00) Thermaltake X-Ray Beverage holder / Cig lighter ($20.00) Internal 25-in-1 Card Reader (MS,CF, SD/MMC/SM) ($35.00) Internal 7-in-1 Card Reader ($20.00) Internal 5-in-1 Card Reader ($10.00)	none
  External Storage	none 2TB Sans Digital MobilSTOR MS2UT USB ($615.00) 4TB Sans Digital MobilSTOR TR4X USB ($1175.00)	none
  SATA Drives	32 GB SATA II 2.5" SSD R 245 W 60 MB/s ($60.00) 64 GB SATA2 2.5" SSD R 270 W 230 MB/s ($155.00) 2 x 64 GB SATA2 2.5" SSD R 270 W 230 MB/s ($400.00) 2 x 128 GB SATA2 2.5" SSD R 270 W 230 MB/s ($525.00) 128 GB SATA2 2.5" SSD R 270 W 230 MB/s ($220.00) 2 x 256 GB SATA2 2.5" SSD R 270 W 230 MB/s ($1595.00) 256 GB SATA2 2.5" SSD R 270 W 230 MB/s ($755.00) 512 GB SATA2 2.5" SSD R 270 W 180 MB/s ($1320.00) 2 x 512 GB SATA2 2.5" SSD R 270 W 180 MB/s ($2725.00) 250 GB SATA II Hard Drive 500 GB SATA II Hard Drive ($40.00) 750 GB SATA II Hard Drive ($75.00) 1 TB SATA II Hard Drive ($115.00) 2 TB SATA II Hard Drive ($205.00) 2.5 TB SATA II Hard Drive ($230.00) 3 TB SATA II Hard Drive ($250.00) 3 x 250 GB SATA II HDs ($180.00) 3 x 500 GB SATA II HDs ($300.00) 3 x 750 GB SATA II HDs ($400.00) 3 x 1.0 TB SATA II HDs ($520.00) 3 x 1.5 TB SATA II HDs ($585.00) 3 x 2.0 TB SATA II HDs ($785.00) 3 x 2.5 TB SATA II HDs ($860.00) 3 x 3.0 TB SATA II HDs ($930.00) 2 x 250 GB SATA II HDs ($90.00) 2 x 320 GB SATA II HDs ($40.00) 2 x 500 GB SATA II HDs ($170.00) 2 x 750 GB SATA II HDs ($235.00) 2 x 1 TB SATA II HDs ($315.00) 2 x 1.5 GB SATA II HDs ($400.00) 2 x 2 TB SATA II HDs ($495.00) 2 x 2.5 TB SATA II HDs ($545.00) 2 x 3 TB SATA II HDs ($590.00)	250 GB SATA II Hard Drive
  PCI 1	none Single port 10/100 Network card ($30.00) Quad Port Intel GbE Network card ($505.00) Single port GbE Network card ($55.00) Dual port Intel GbE Network card ($195.00) 10GbE Intel PCI-E SFP+ Fiber Optic network ($815.00) 10GbE Intel X520-T2 2-port RJ-4 network ($940.00) 10GbE Universal 2-port CX4 copper network ($470.00) 4 port Network card 10/100 32-bit routerboard ($135.00) Wireless a/b/g PCI card ($75.00) Asus My Cinema P7131 ($50.00) Hauppage WinTV-HVR-1110 TV Tuner Card ($110.00) HDTV HD-5500 TV Tuner Card ($160.00) Sound Blaster Audigy SE ($35.00) Sound Blaster X-Fi Xtreme Audio ($90.00)	none
  PCI 2	none Single port 10/100 Network card ($30.00) Quad Port Intel GbE Network card ($505.00) Single port GbE Network card ($55.00) Dual port Intel GbE Network card ($195.00) 10GbE Intel PCI-E SFP+ Fiber Optic network ($815.00) 10GbE Intel X520-T2 2-port RJ-4 network ($940.00) 10GbE Universal 2-port CX4 copper network ($470.00) 4 port Network card 10/100 32-bit routerboard ($135.00) Wireless a/b/g PCI card ($75.00) Hauppage WinTV-HVR-1110 TV Tuner Card ($110.00) Asus My Cinema P7131 ($50.00) HDTV HD-5500 TV Tuner Card ($160.00) Sound Blaster Audigy SE ($35.00) Sound Blaster X-Fi Xtreme Audio ($90.00)	none
  Operating System	OpenBSD PCLinuxOS Puppy Linux FreeBSD legacy FreeBSD production Gentoo Linux NetBSD SimplyMEPIS Linux 11 Ubuntu Linux 12.04 LTS Server Edition Ubuntu Linux 13.04 Server Edition Ubuntu Linux 13.04 Desktop Edition Ubuntu Linux 12.04 LTS Desktop Edition Mandriva Linux ELX Linux Linux Mint 13 Fedora Linux 18 CentOS Linux 5.x current CentOS Linux 6.x current Novell SUSE Linux Enterprise Desktop 11 ($45.00) Fedora Linux 17 Red Hat® Linux Enterprise Workstation ($245.00) OpenSUSE Debian Linux - development Debian Linux - testing Debian Linux - stable v6.0.x Xandros Standard ($55.00) Xandros Deluxe ($135.00) No OS - (tested with Ubuntu) MS Windows 7 Professional ($190.00) MS Windows 7 Home Premium ($140.00)	Ubuntu Linux 12.04 LTS Desktop Edition
  Desktop Software	default KDE XFCE GNOME	default
  Software	default Zimbra Desktop	default
  Donation target	The FreeBSD Foundation The OpenSSH Project The OpenBSD Project Other Open Source Project (please state in Notes) Electronic Frontier Foundation No donation	Electronic Frontier Foundation
  Donation amount	No donation ($-5.00) $5.00 $10.00 ($10.00) $25.00 ($30.00) $50.00 ($60.00)	$5.00
  Warranty	Standard 1yr full /3yr limited warranty Extended 2yr full / 3yr limited warranty ($135.00) Premium full 3yr warranty ($270.00)	Standard 1yr full /3yr limited warranty
